Weikav MAX102 Keyboard Kit
Weikav MAX102 Keyboard Kit
Description
Description
The Weikav Max102 is a full-size 102-key mechanical keyboard built with precision engineering and enthusiast-level features. It offers a dedicated numpad, full navigation cluster, and optimized arrow key placement, making it ideal for gaming, productivity, and professional use.

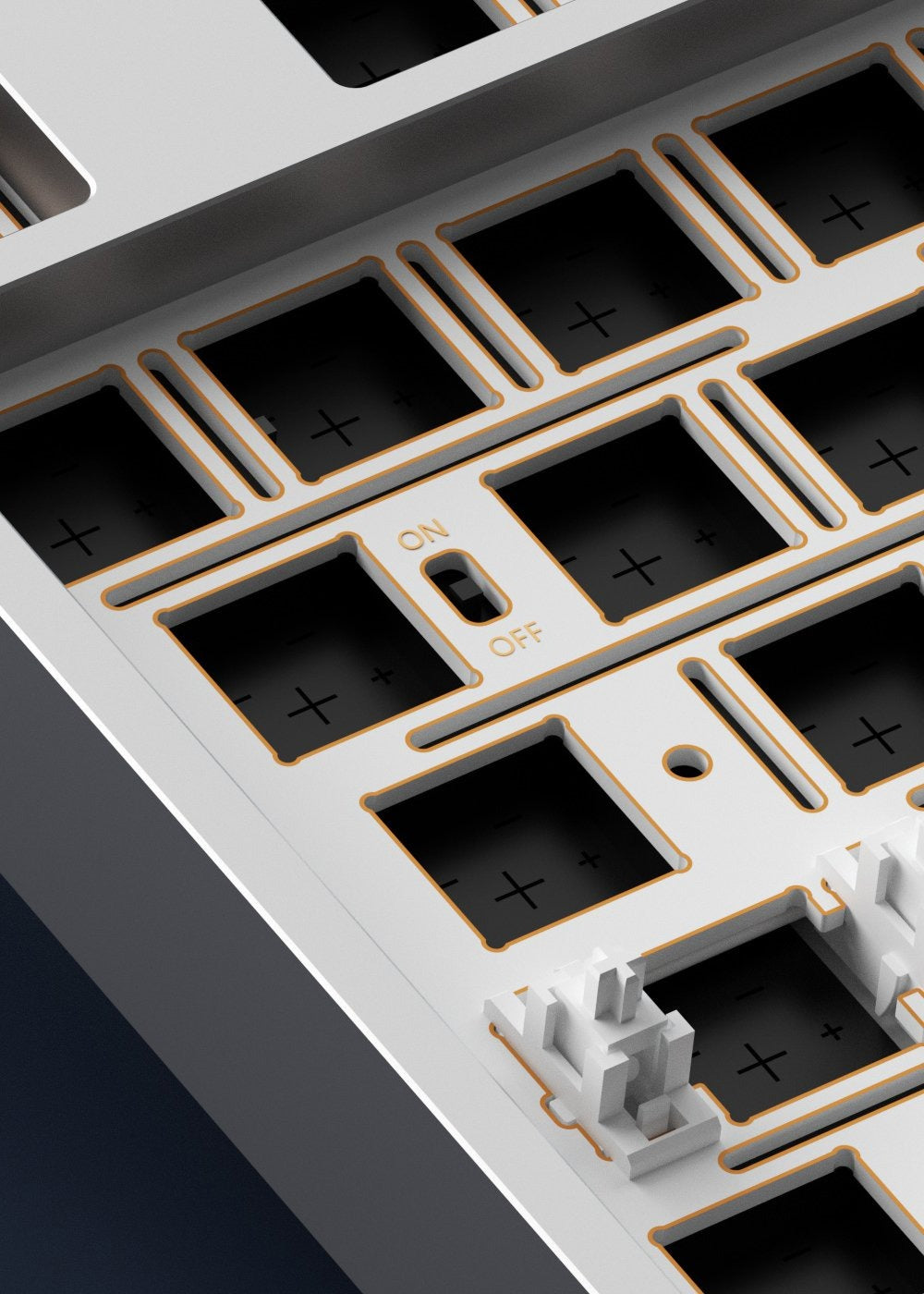

With tri-mode connectivity options — USB-C wired, 2.4 GHz wireless, and Bluetooth — the Max102 adapts seamlessly to multiple devices and setups. A 10,000 mAh rechargeable battery ensures long-lasting wireless performance, while the mode switch beneath the Tab key lets you toggle between connection modes with ease.

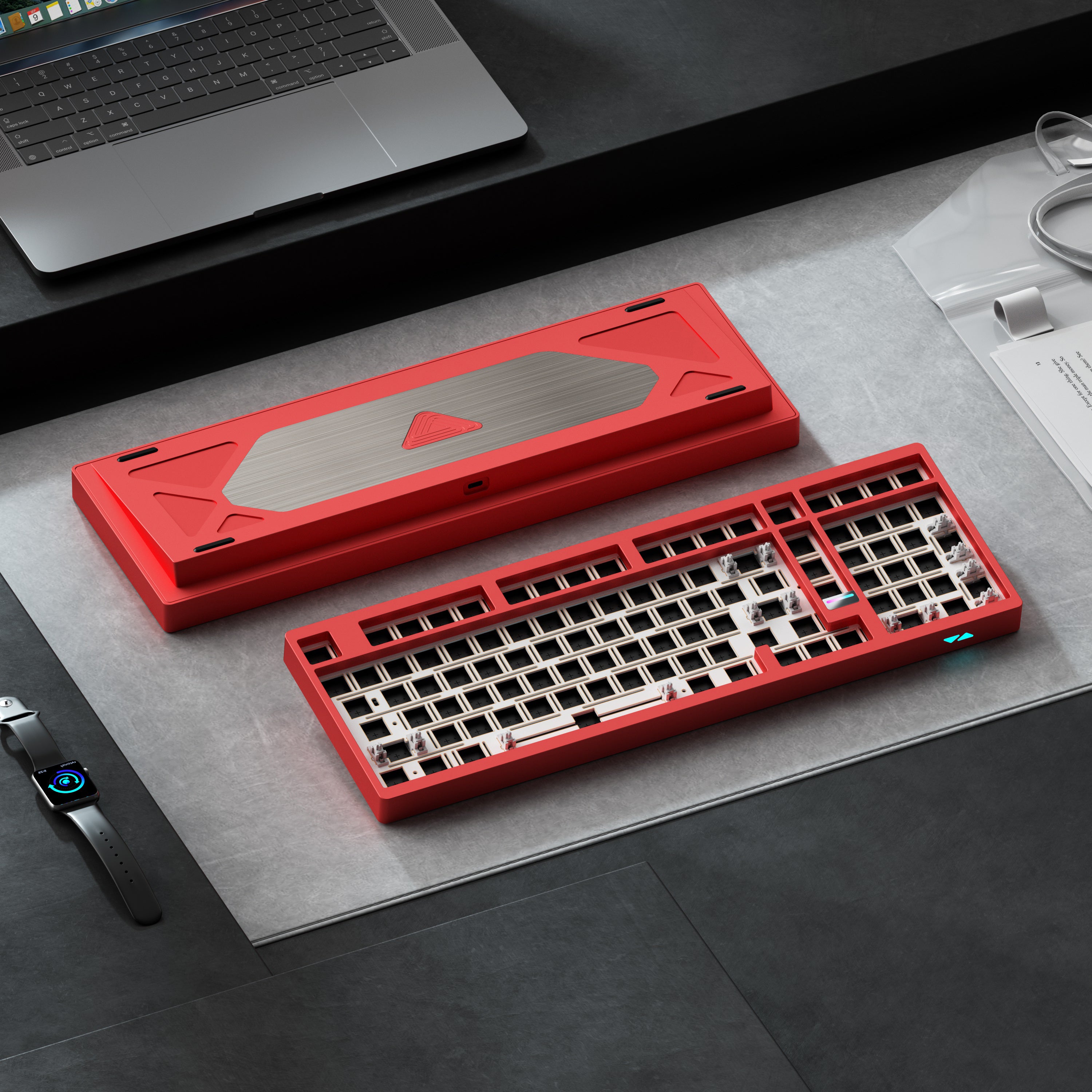

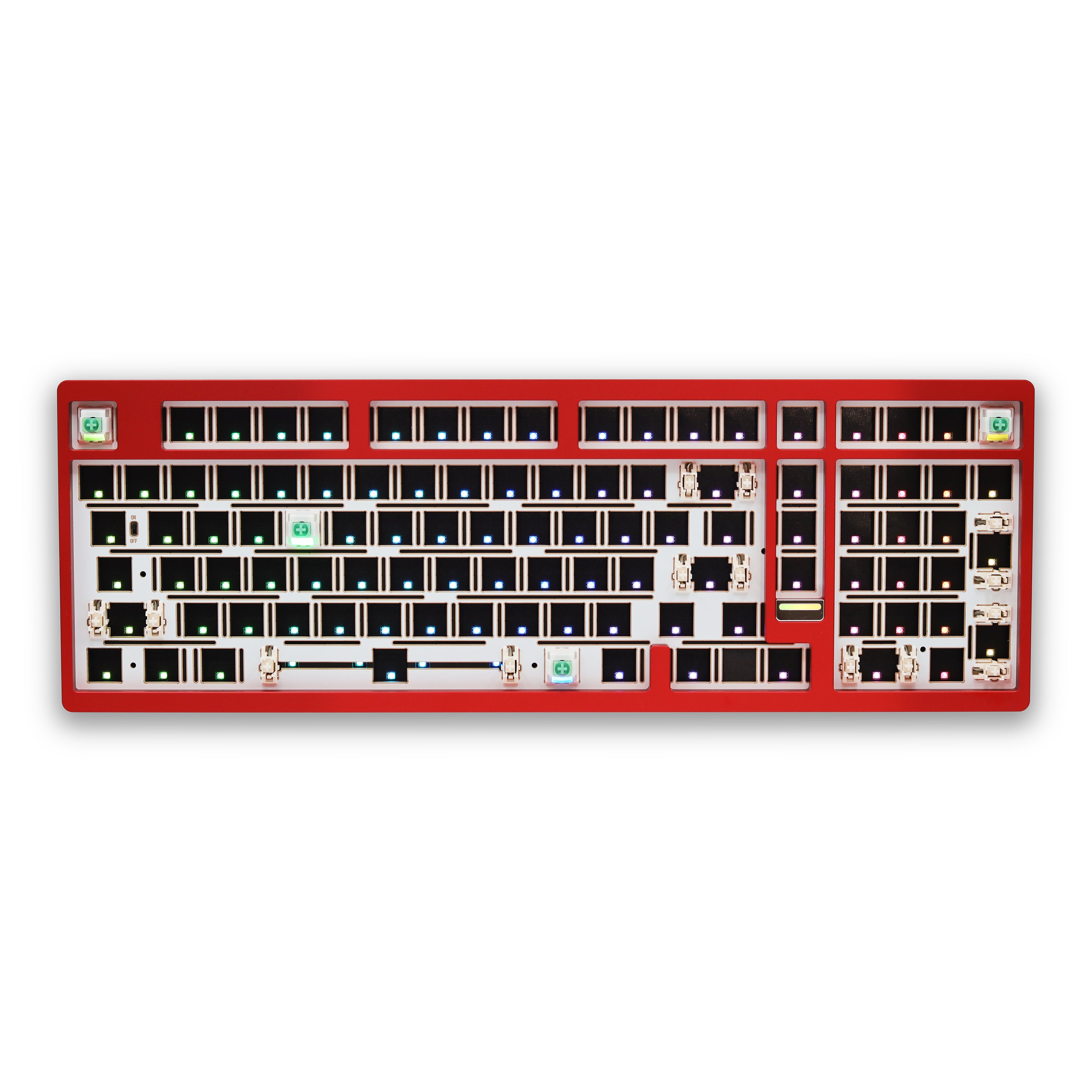

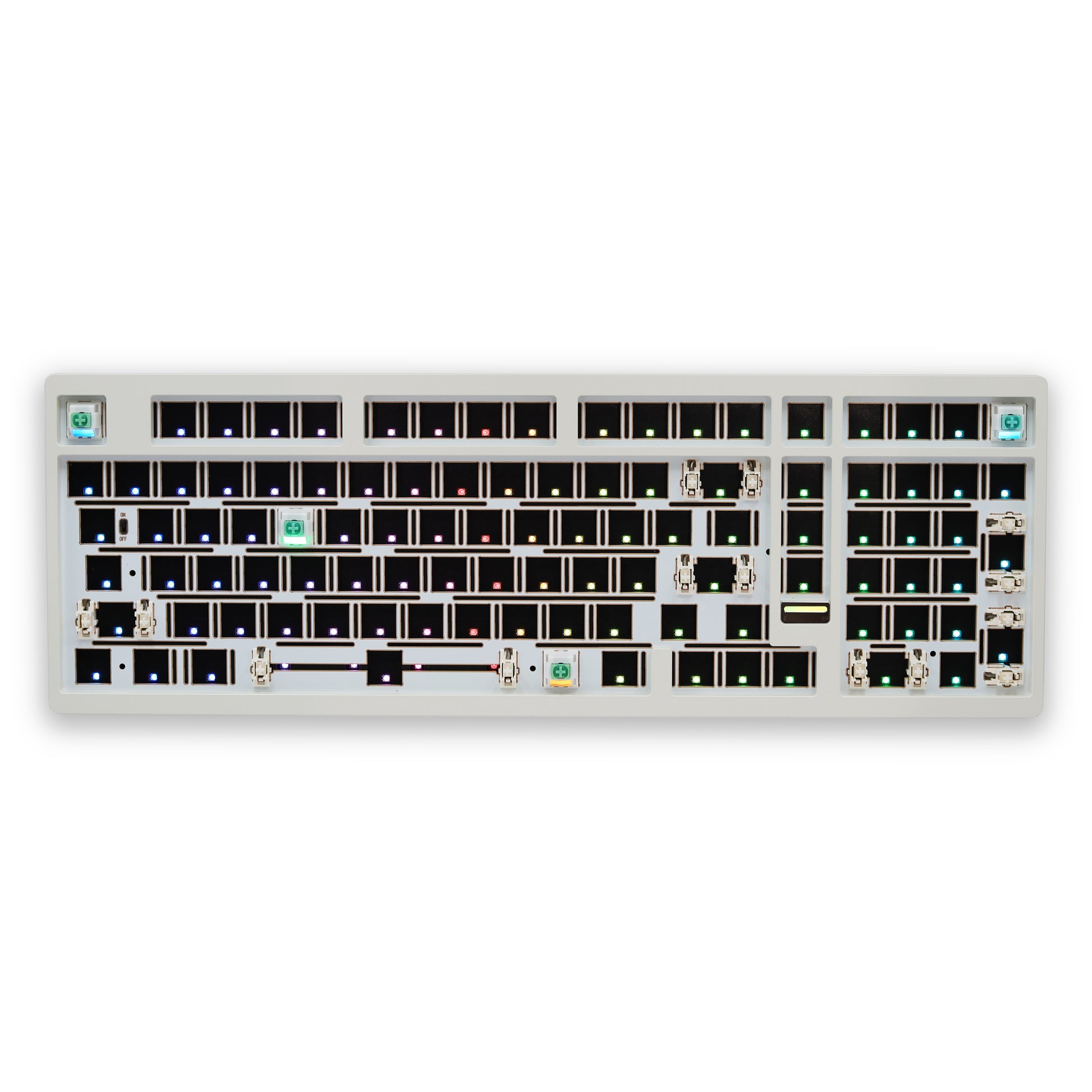

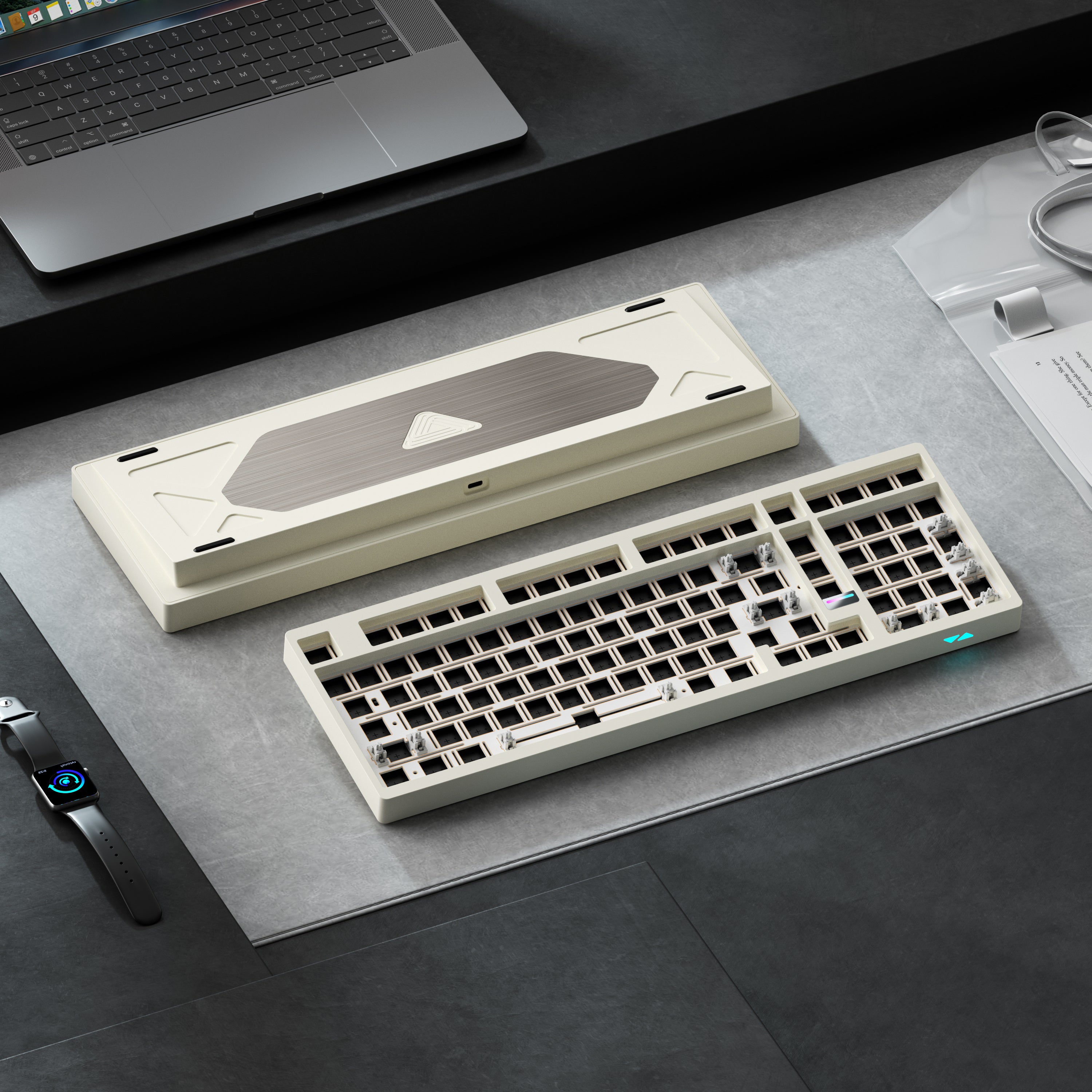

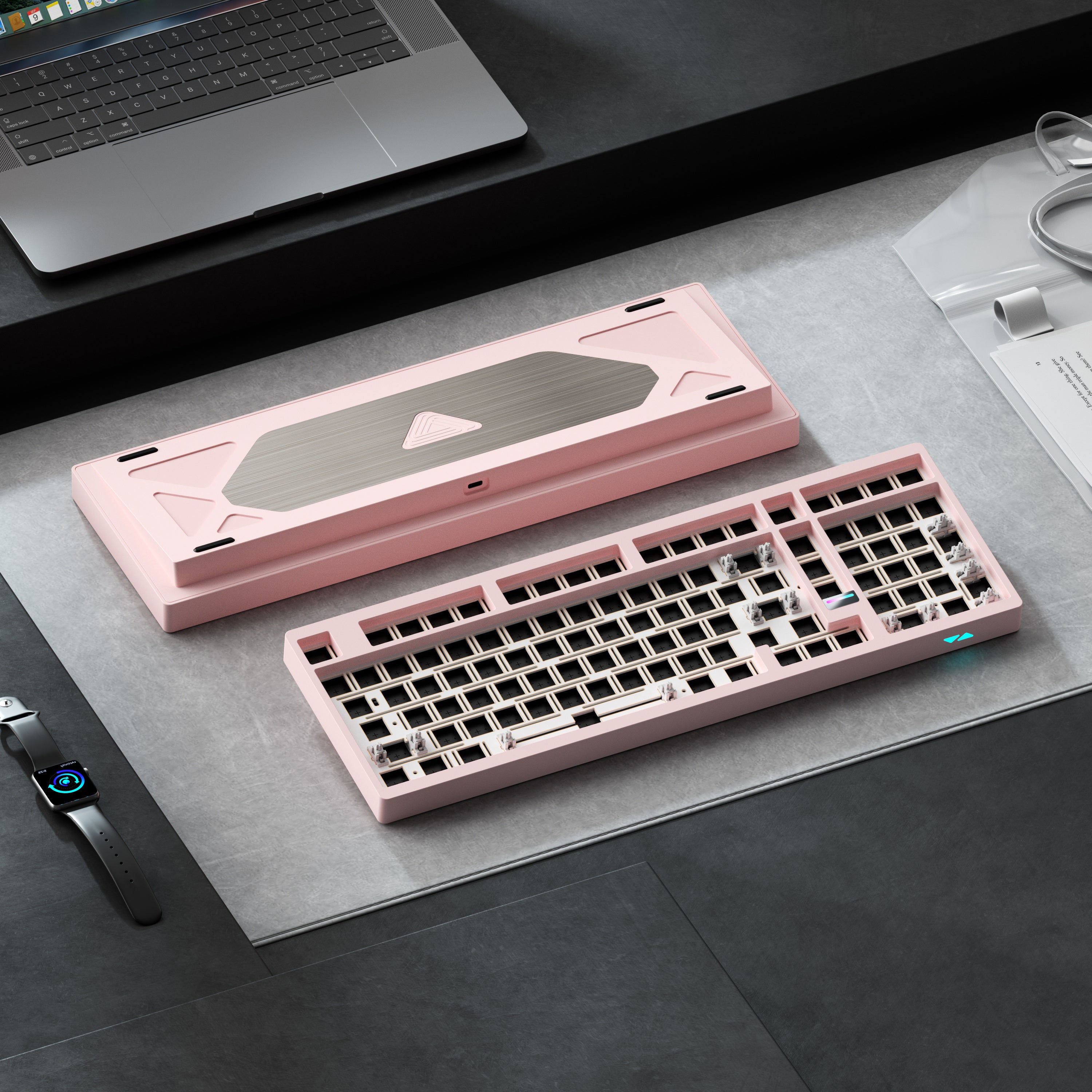

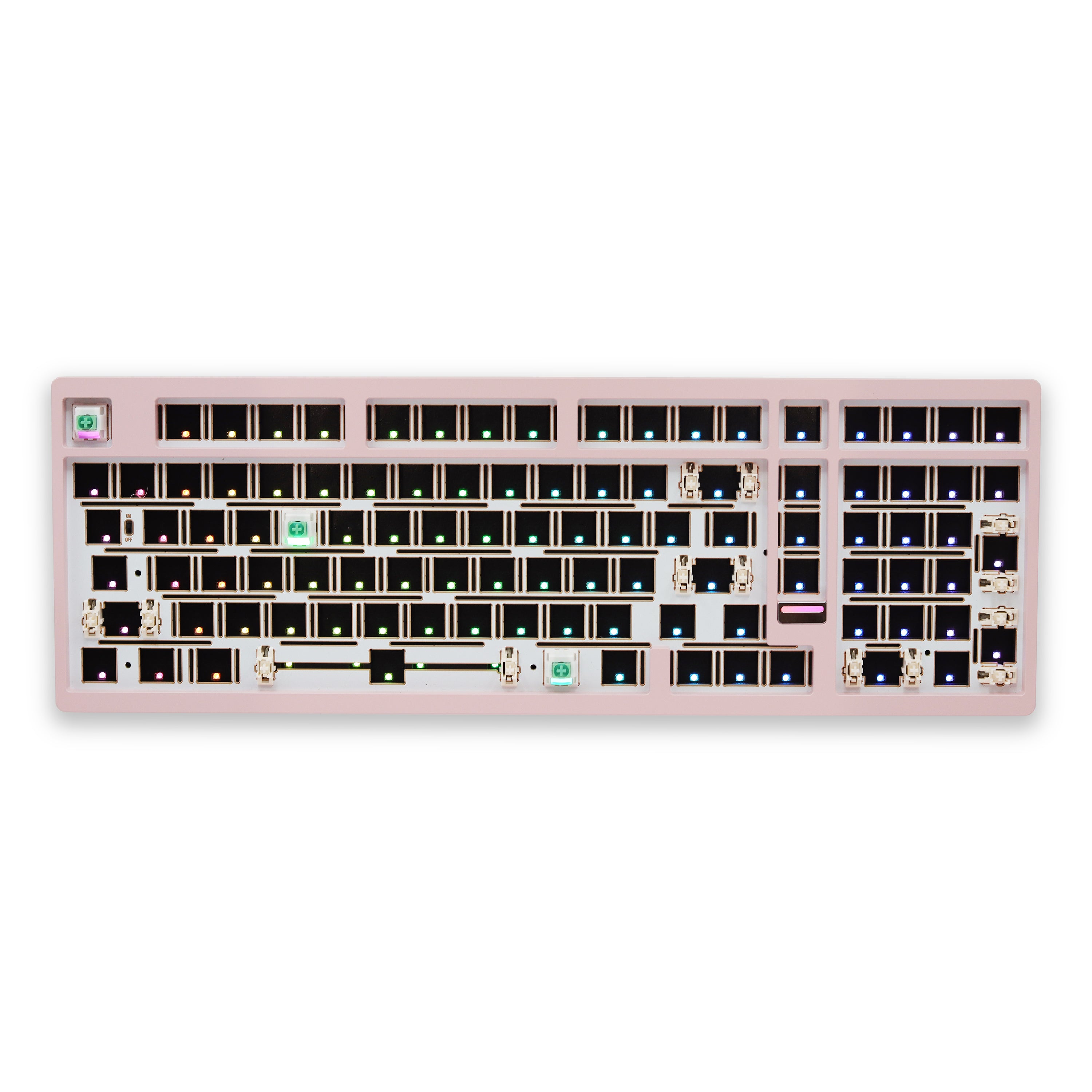

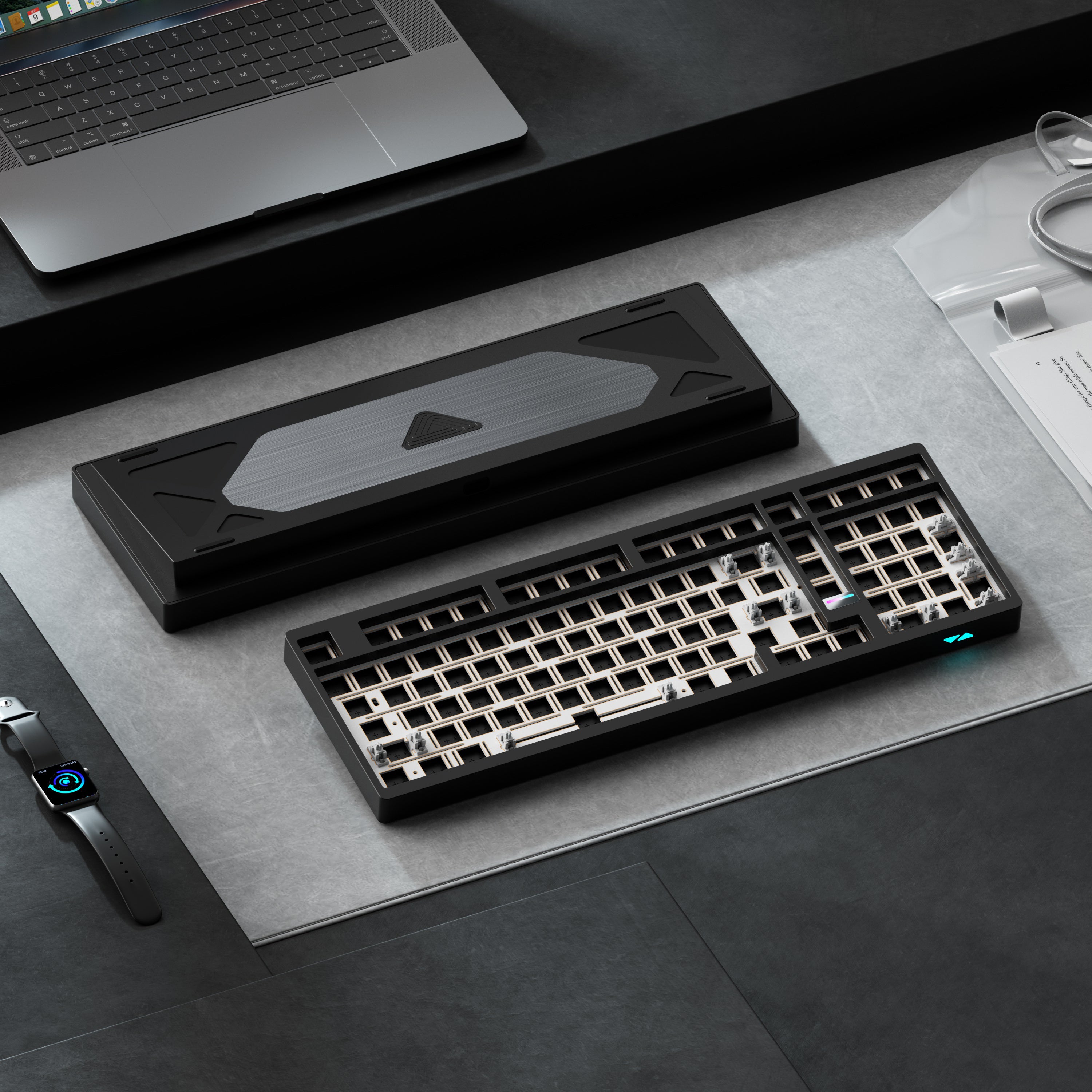

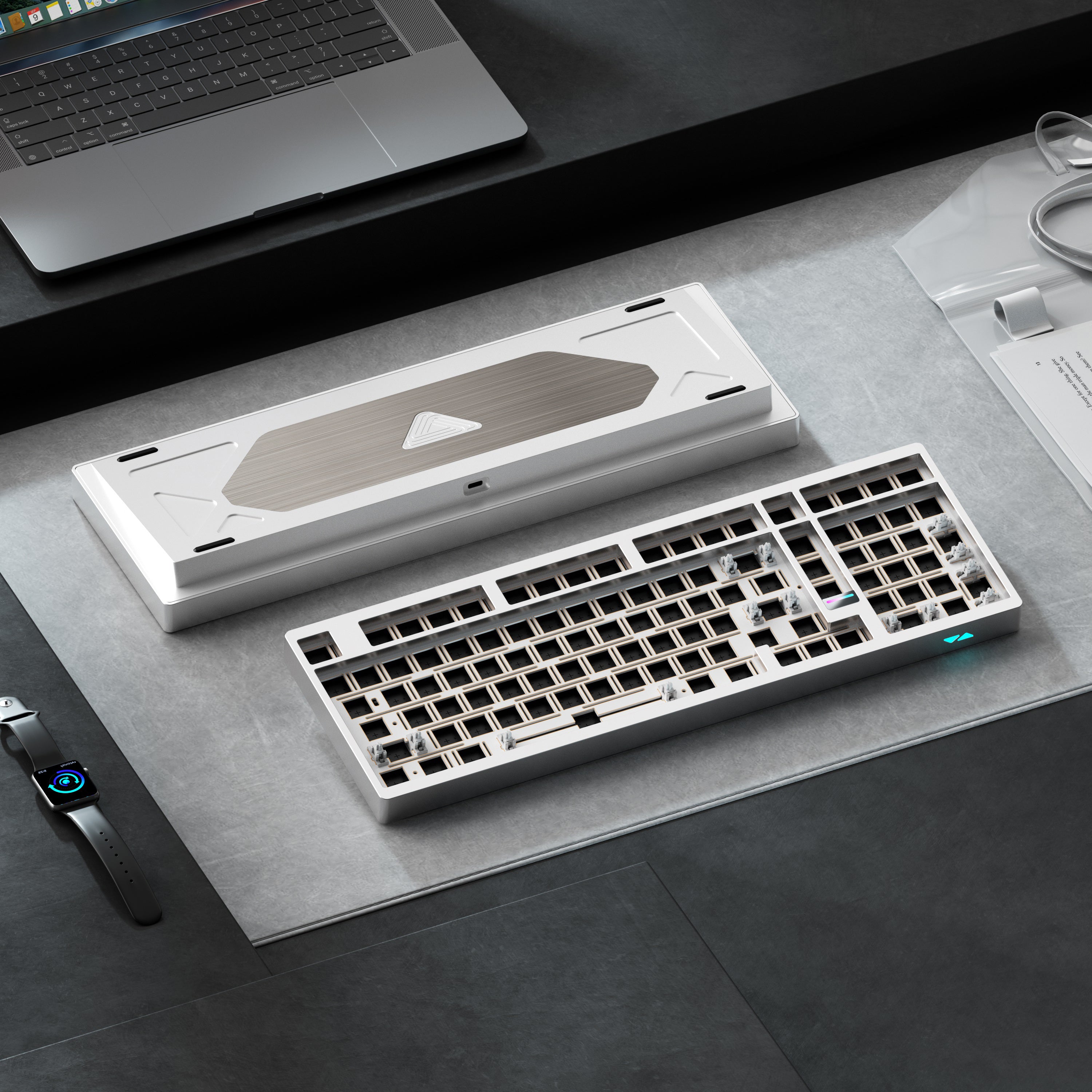

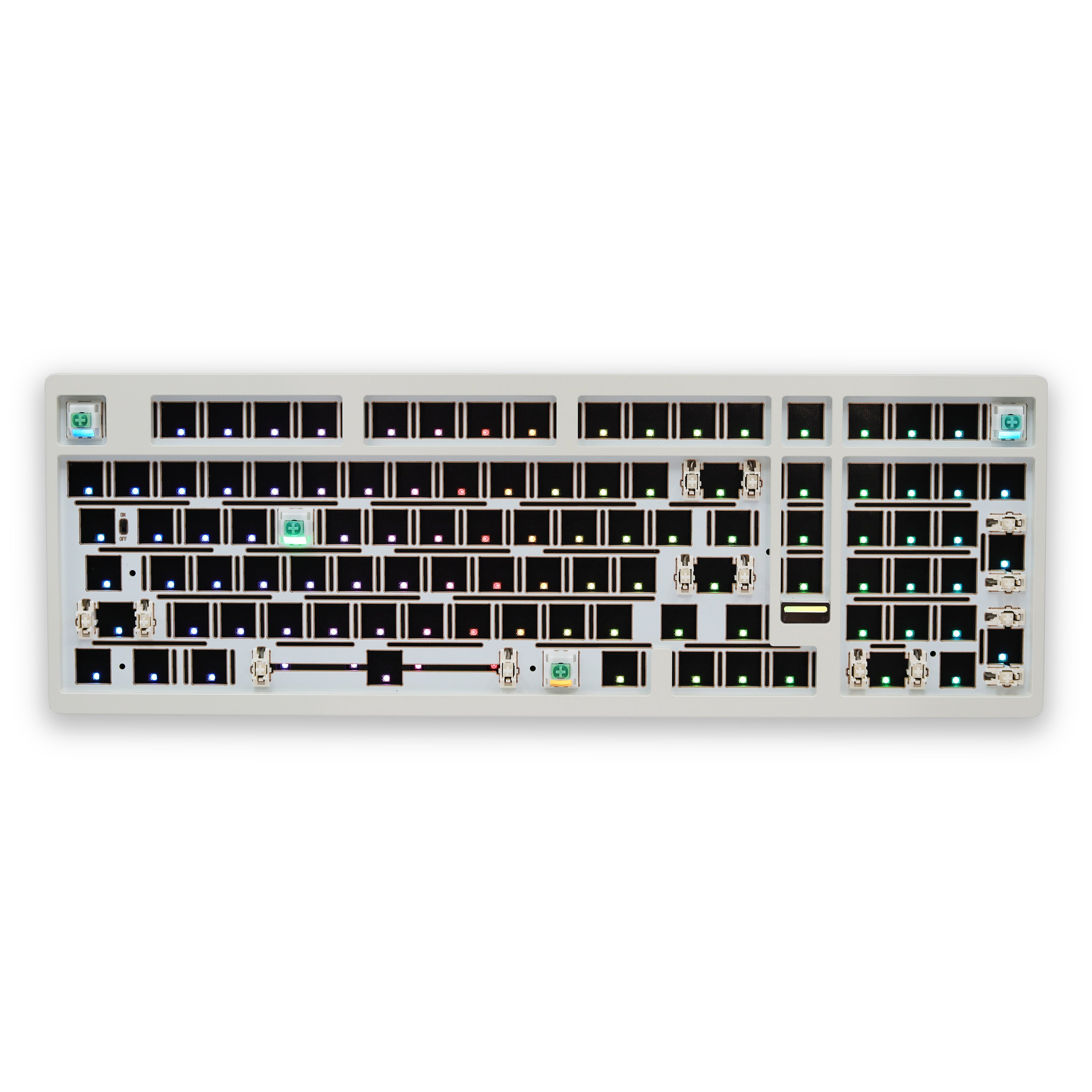

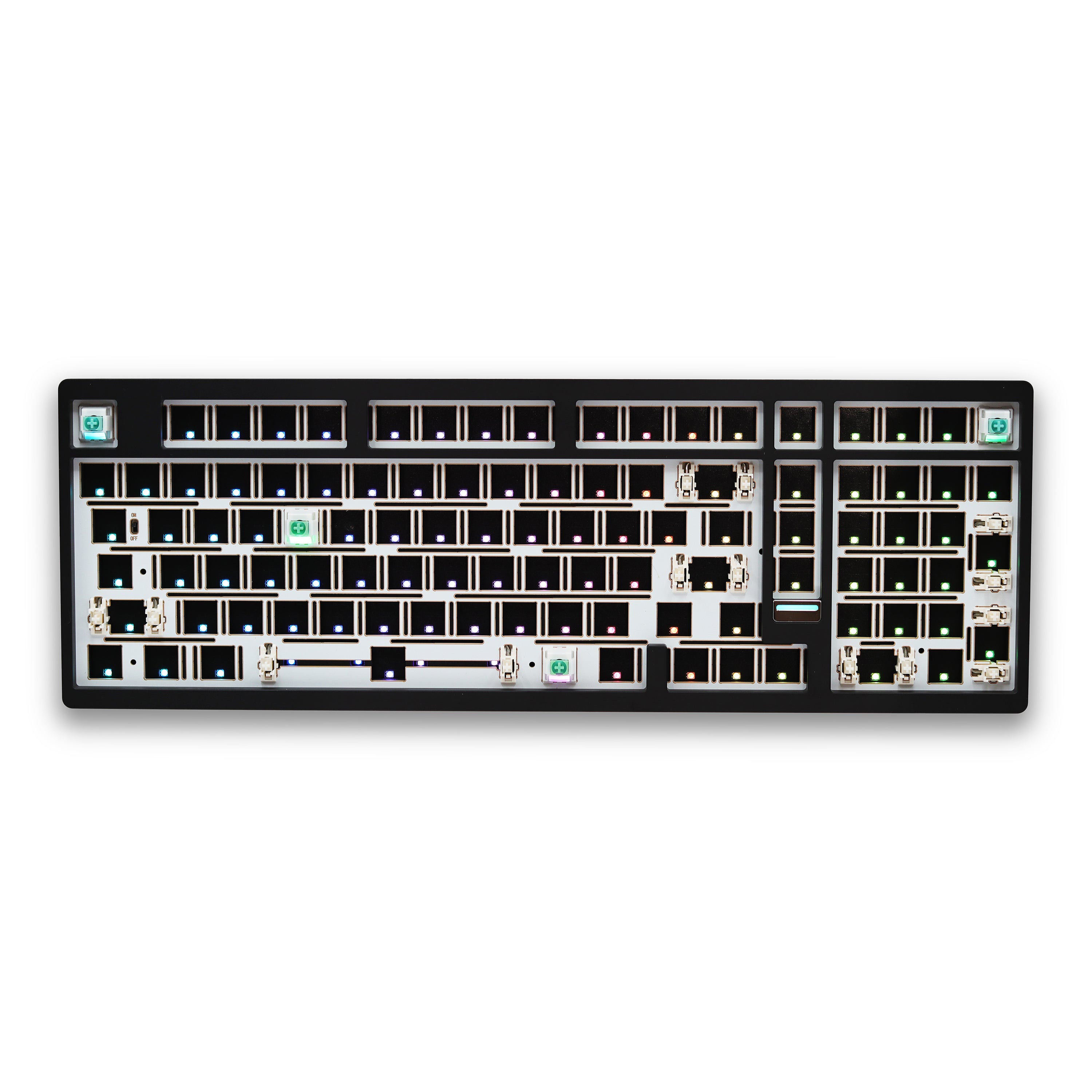

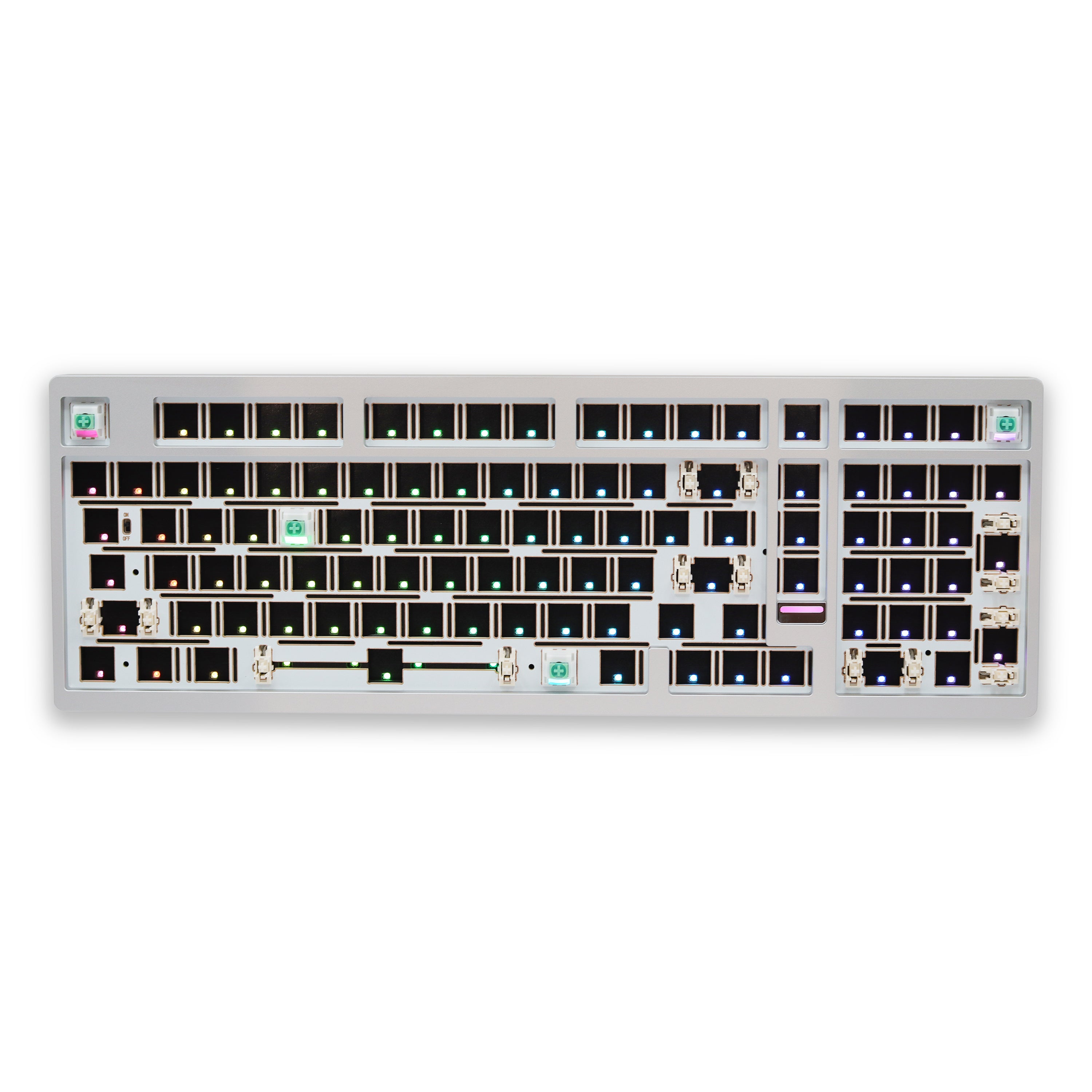

Constructed from 6063 aluminum using a 220-grit CNC process, the Max102 delivers durability, stability, and a premium finish. It is available in anodized black, silver, red, or electrophoresis warm white and pink color options.

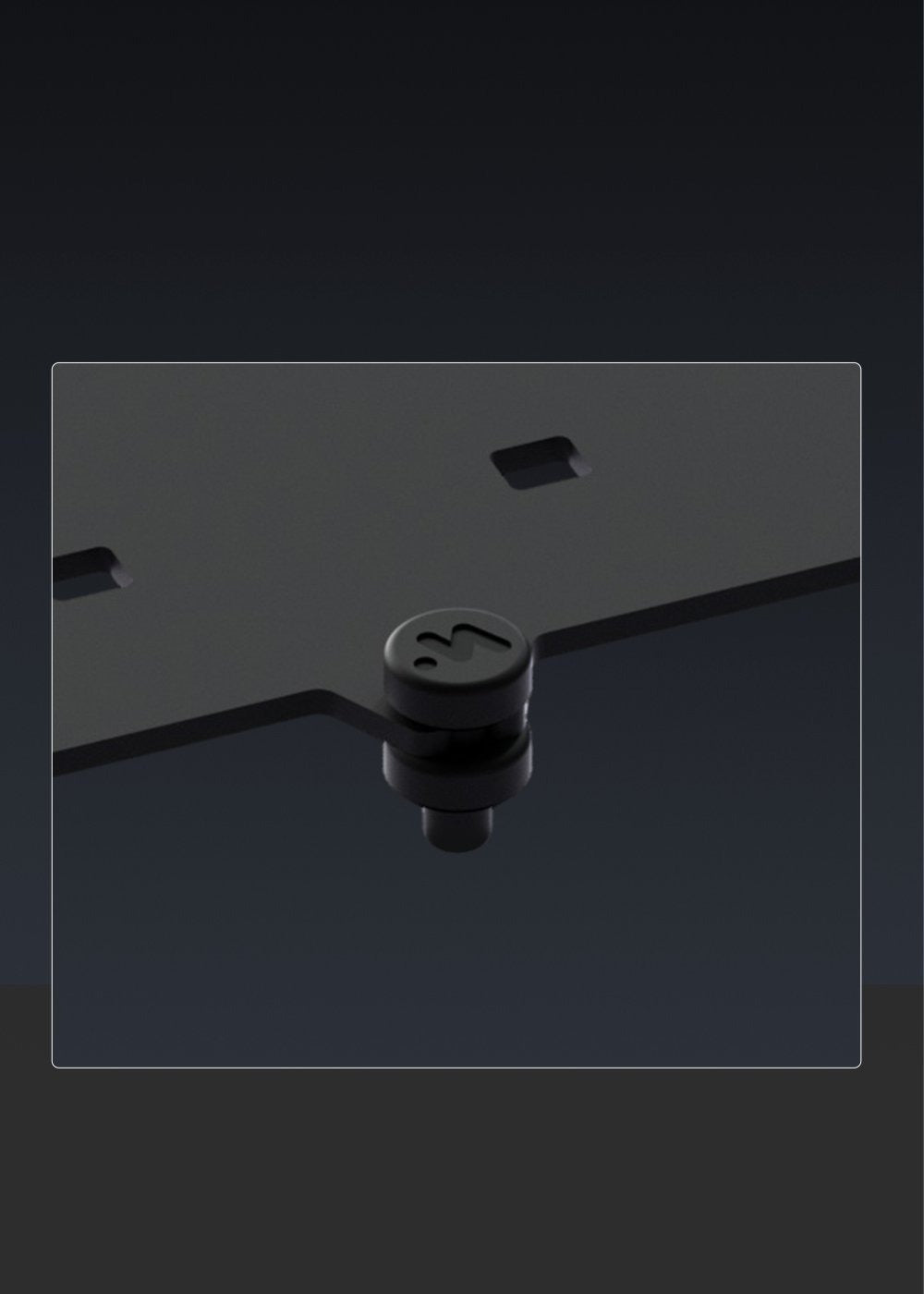

The keyboard is designed with a PCB-gasket structure, silicone particle damping, and corner pads for improved acoustics and typing comfort. A ball-catch quick release system makes maintenance simple and efficient.
Hot-swap support allows MX-style mechanical switches to be swapped without soldering. Combined with QMK and VIA firmware compatibility, users can fully remap keys, configure macros, and create custom layers for a personalized typing experience.
The FR4 plate construction ensures stability and a consistent feel, while N-key rollover (NKRO) and anti-ghosting guarantee accurate keystrokes during fast-paced gaming or heavy typing sessions.
The Max102 works across Windows, macOS, Linux, iPadOS, iOS, and Android, making it versatile for desktops, laptops, and mobile devices. Measuring 400 mm by 130.5 mm, with an adjustable height profile (20 mm front, 40 mm rear) and a solid weight of 2100 g, it delivers both presence and performance on any desk.
Included in The Box
Included in The Box

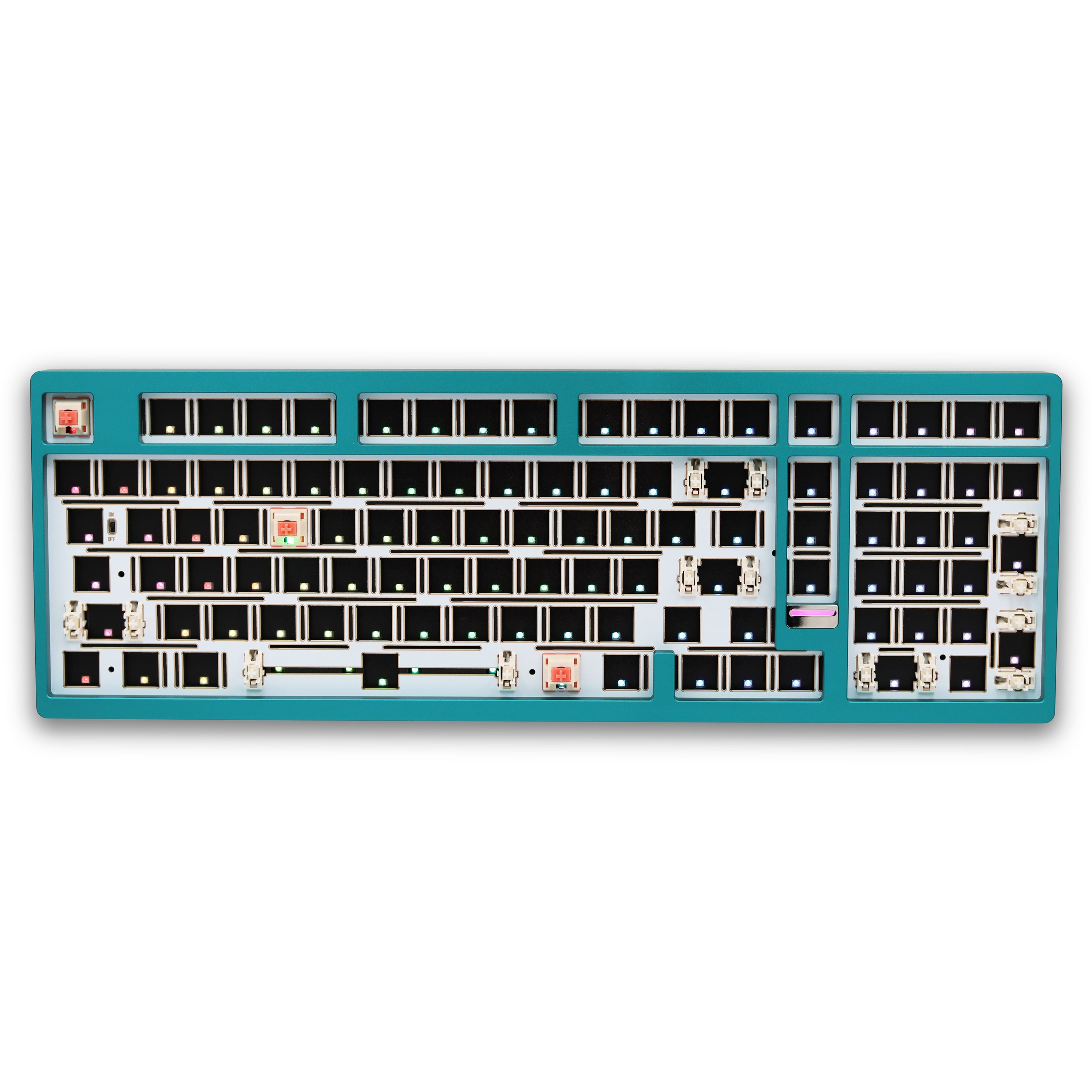

- Full-size 102-key mechanical keyboard with a refined 100% layout and optimized arrow cluster alignment
- Tri-mode connectivity: USB-C wired, 2.4 GHz wireless, and Bluetooth switching via under-Tab key toggle
- Premium 6063 aluminum CNC milled case (220-grit finish) offering high durability and refined aesthetics

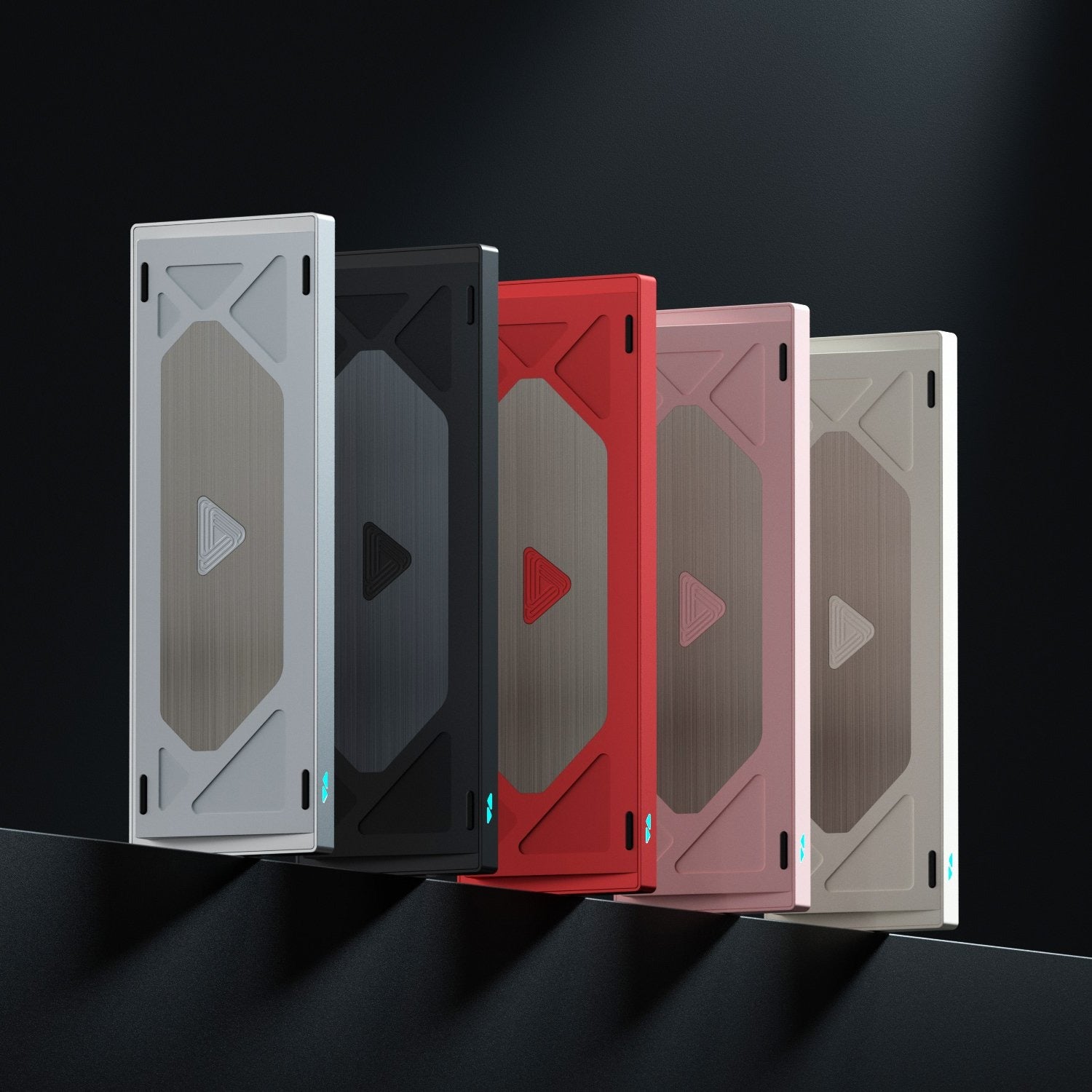

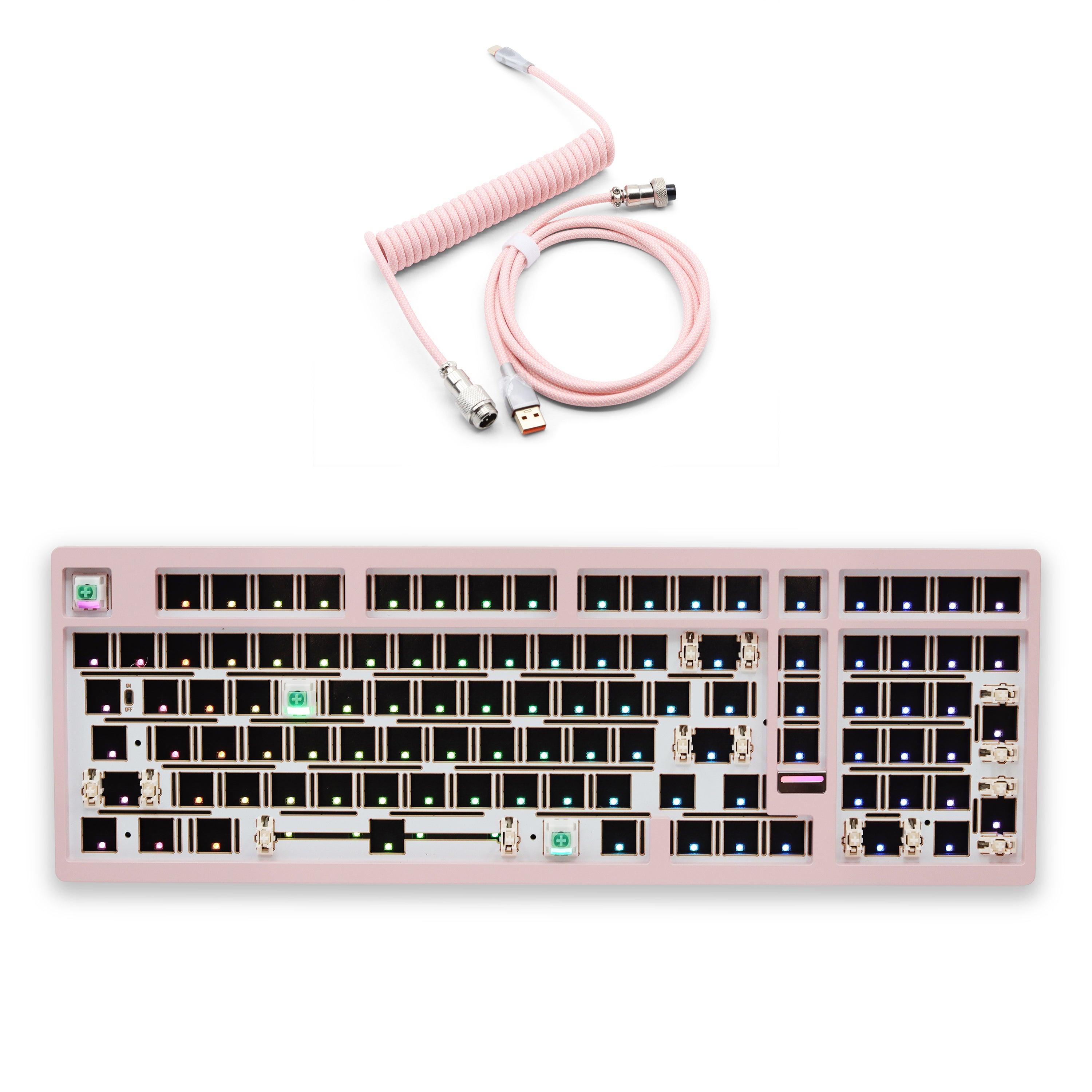

- Available in anodized (black, silver, red) and electrophoresis (warm white, pink) color options
- PCB-gasket structure using silicone particle damping for consistent acoustic response and refined typing sound
- Impact-absorbing silicone pads in corner zones to reduce case ping and vibration

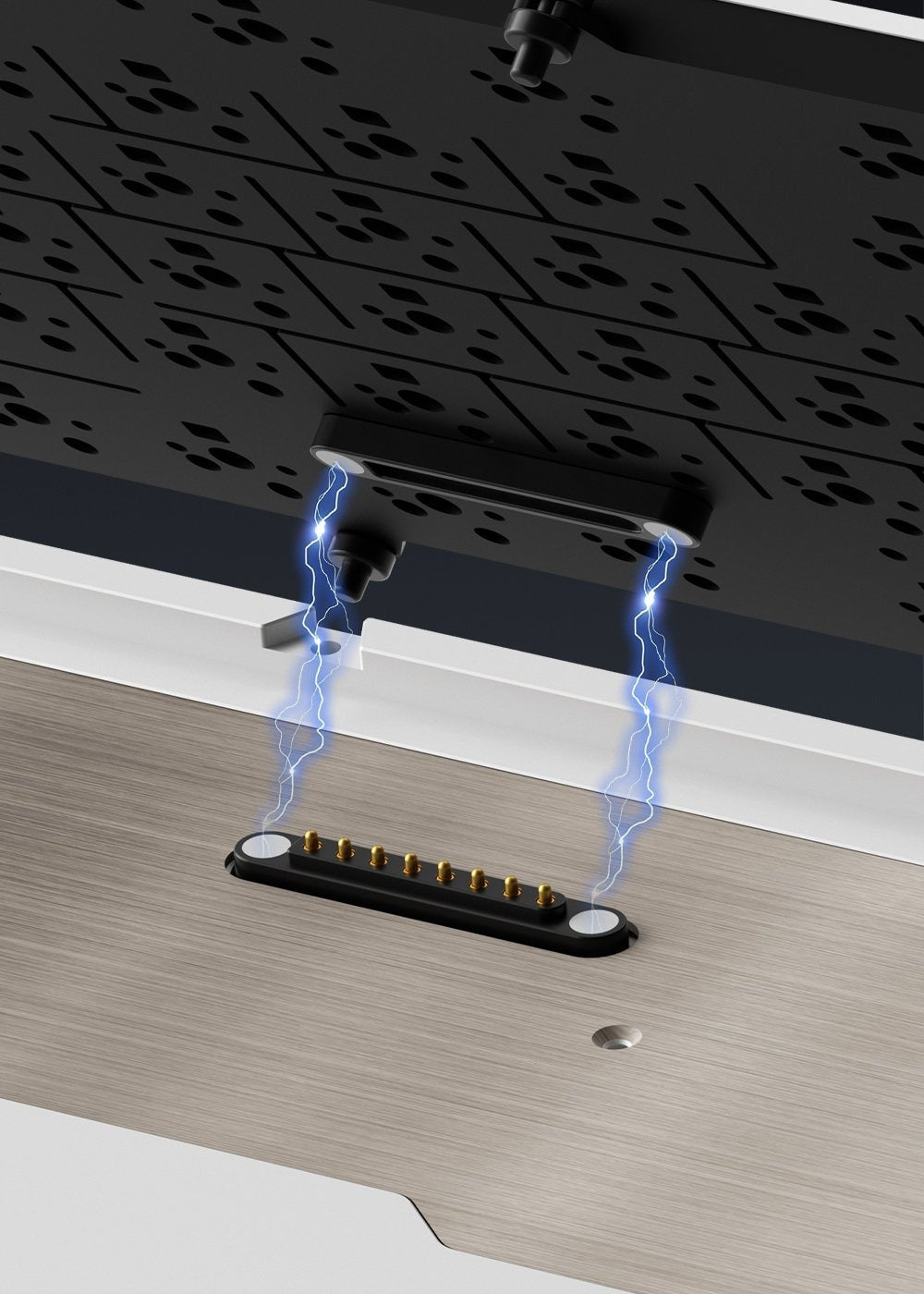

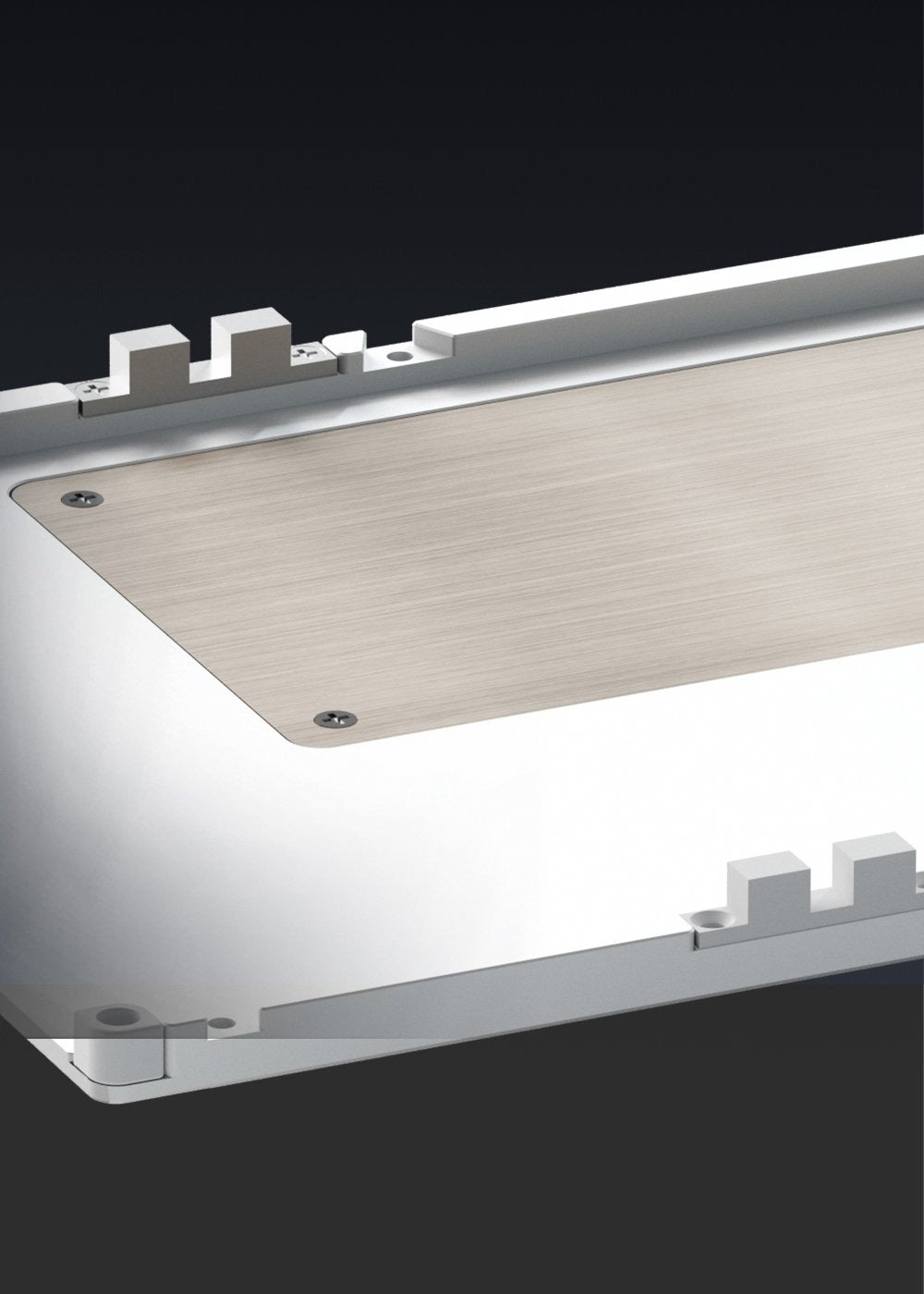

- Ball-catch quick-release mechanism combined with magnetic pogo pins for modular disassembly and stable power connection
- Hot-swap MX-style switch sockets (no soldering required) for easy switch replacement or customization
- Full QMK and VIA firmware support with driver options for key remapping, macro layers, and custom lighting
- FR4 switch plate construction supports stable switch mounting and reliable actuation behavior
- N-key rollover (NKRO) and anti-ghosting ensure every keypress is accurately registered during fast typing or gaming
- Broad OS compatibility: fully supported on Windows, macOS, Linux, iPadOS, iOS, and Android platforms
- Dimensions: 400 mm (L) × 130.5 mm (W); adjustable profile heights: 20 mm front, 40 mm rear
- Robust weight and inertia (~2,100 g) helps prevent movement on the desk under intense use
| Layout | 100% |
| Number of Keys | 102 |
| Switch Stems | Cross |
| Hotswap Sockets | Yes |
| N-key Rollover Support | Yes |
| Switch Mount Type | Plate |
| Firmware Compatibility | VIA |
| Backlight Modes | Default 7 modes, fully customizable |
| Compatibility | Windows, Mac, Linux, iOS, Android |
| Case Material | 6063 Aluminum |
| Craft | Anodizing / Electrophoresis |
| Plate | FR4 |

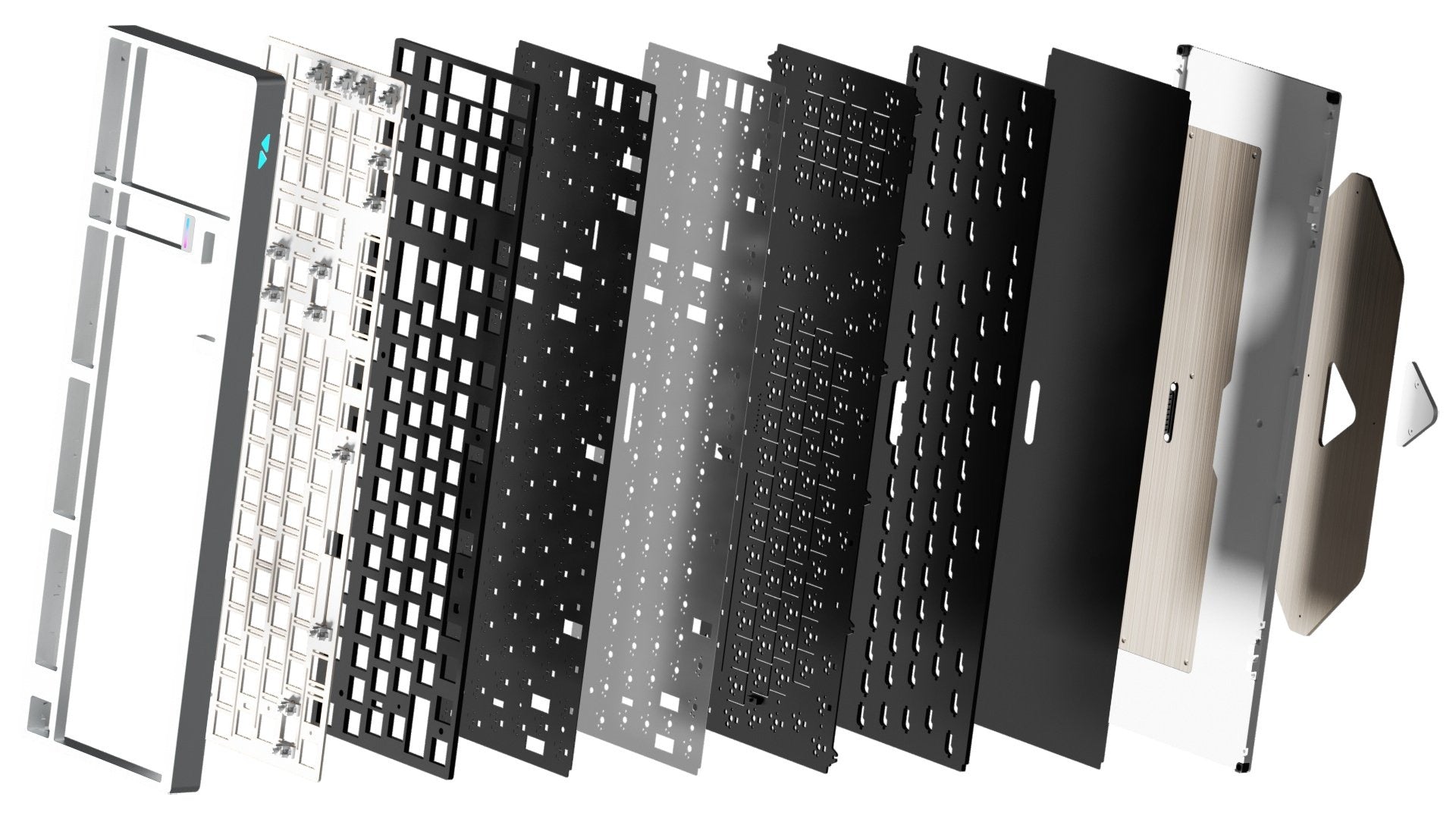

| Layers | Poron + IXPE + PET + EPDM + IXPE |
| Length | 400 mm |
| Width | 130.5 mm |
| Front Height | 20 mm |
| Rear Height | 40 mm |
| Net Weight | 2100 g |
