Weikav NUT87 Keyboard Kit
Description
Description

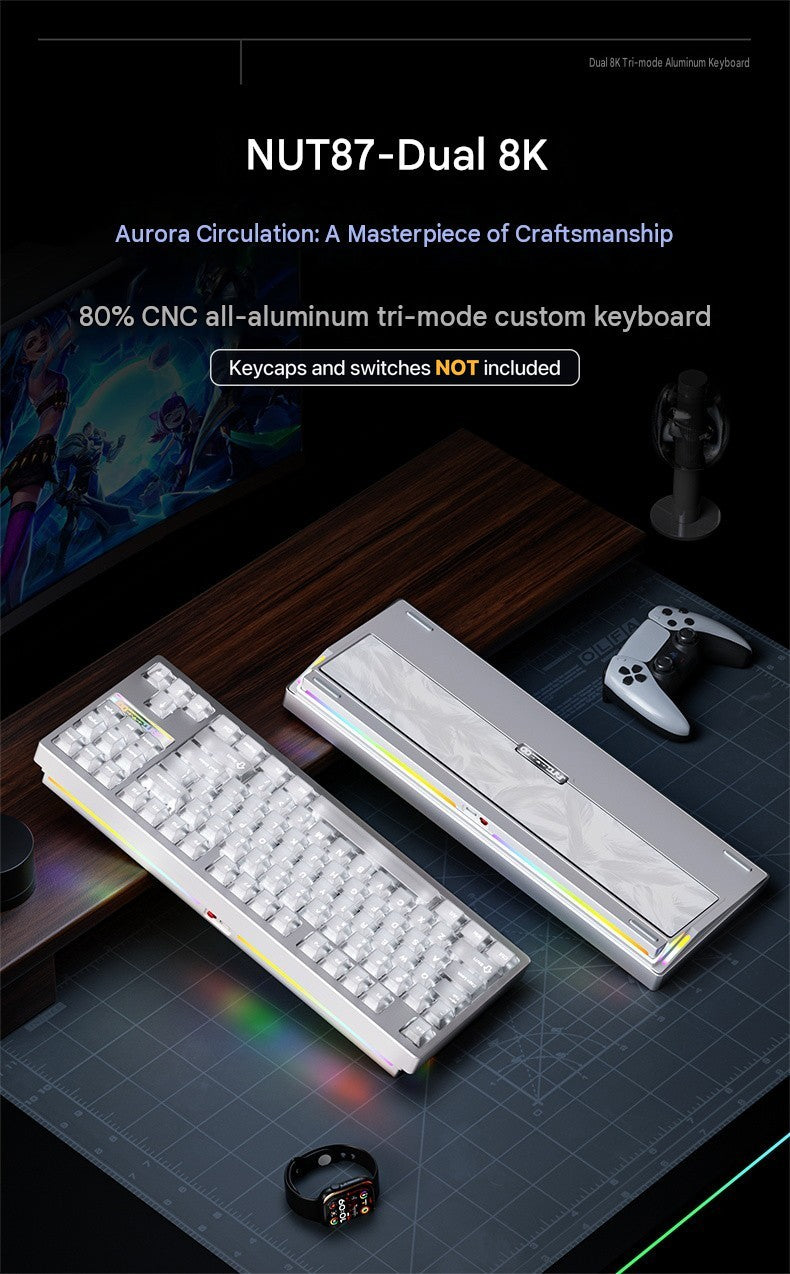

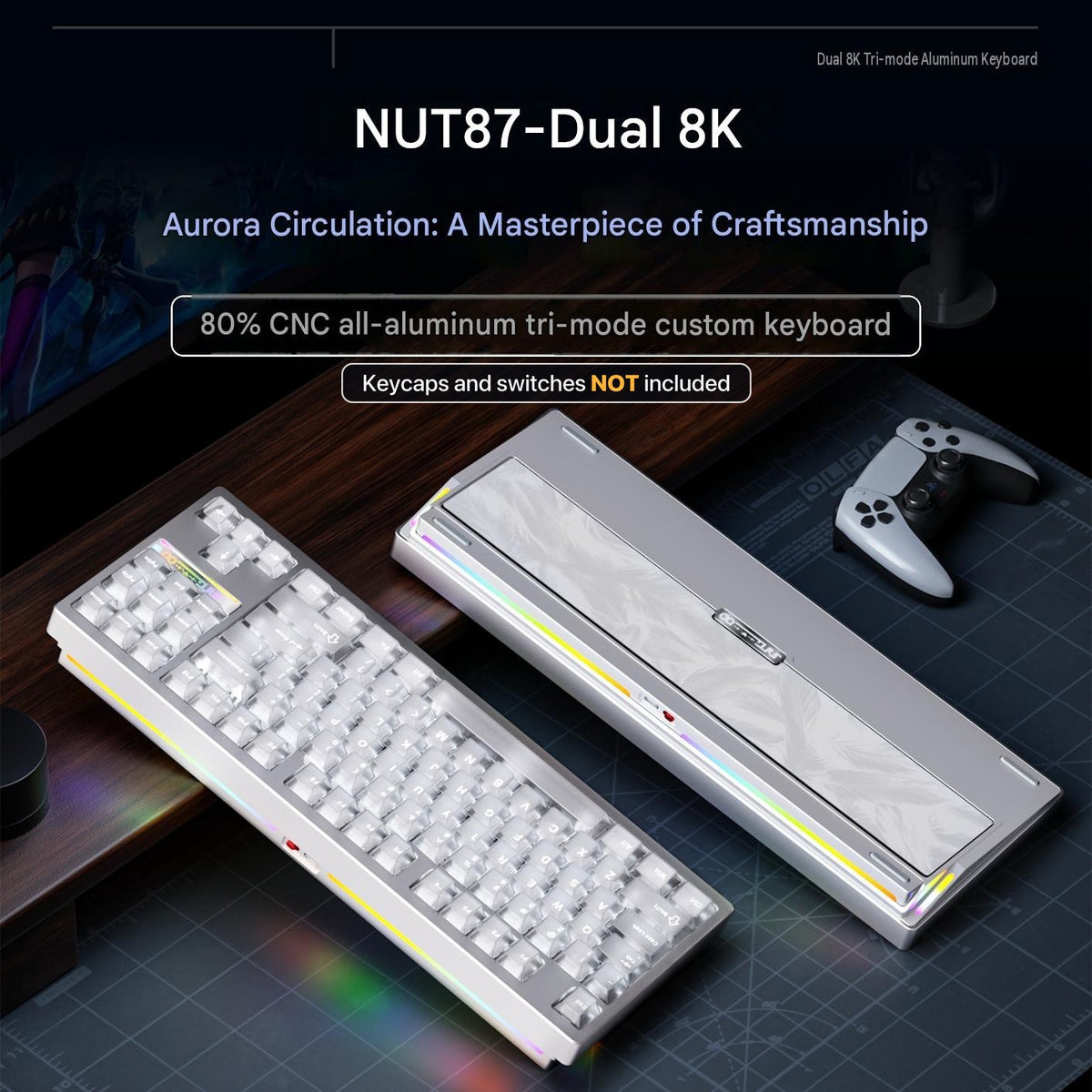

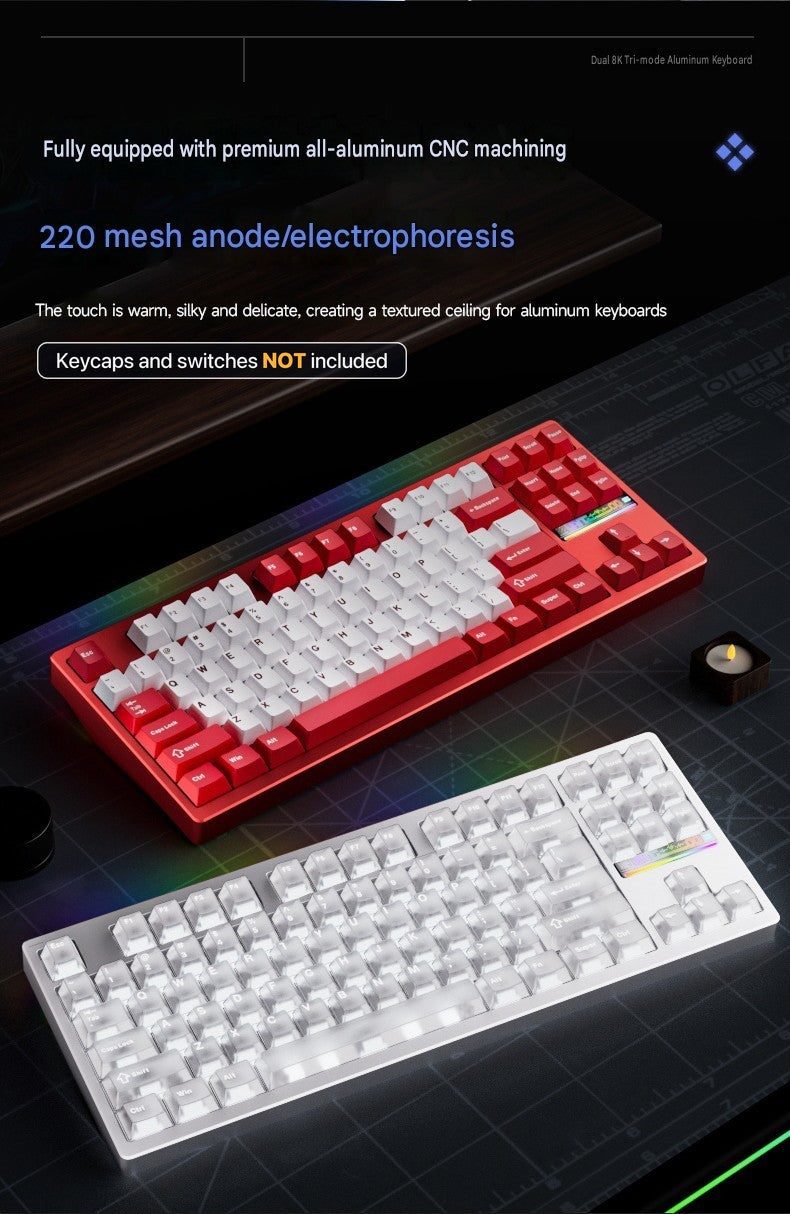

The Weikav NUT87 Keyboard Kit is a barebone TKL wireless mechanical keyboard kit for builders who want a tenkeyless layout with no compromise on speed or build quality. The case is CNC-machined from solid 6063 aluminum and sandblasted to a 220-grit anodized finish, leaving a soft matte surface that resists fingerprints. Inside, a gasket-mounted PC plate, a 1.2mm single-key-slot PCB and a five-layer PORON, PET and IXPE dampening stack give every keystroke a soft, even, well-damped sound.

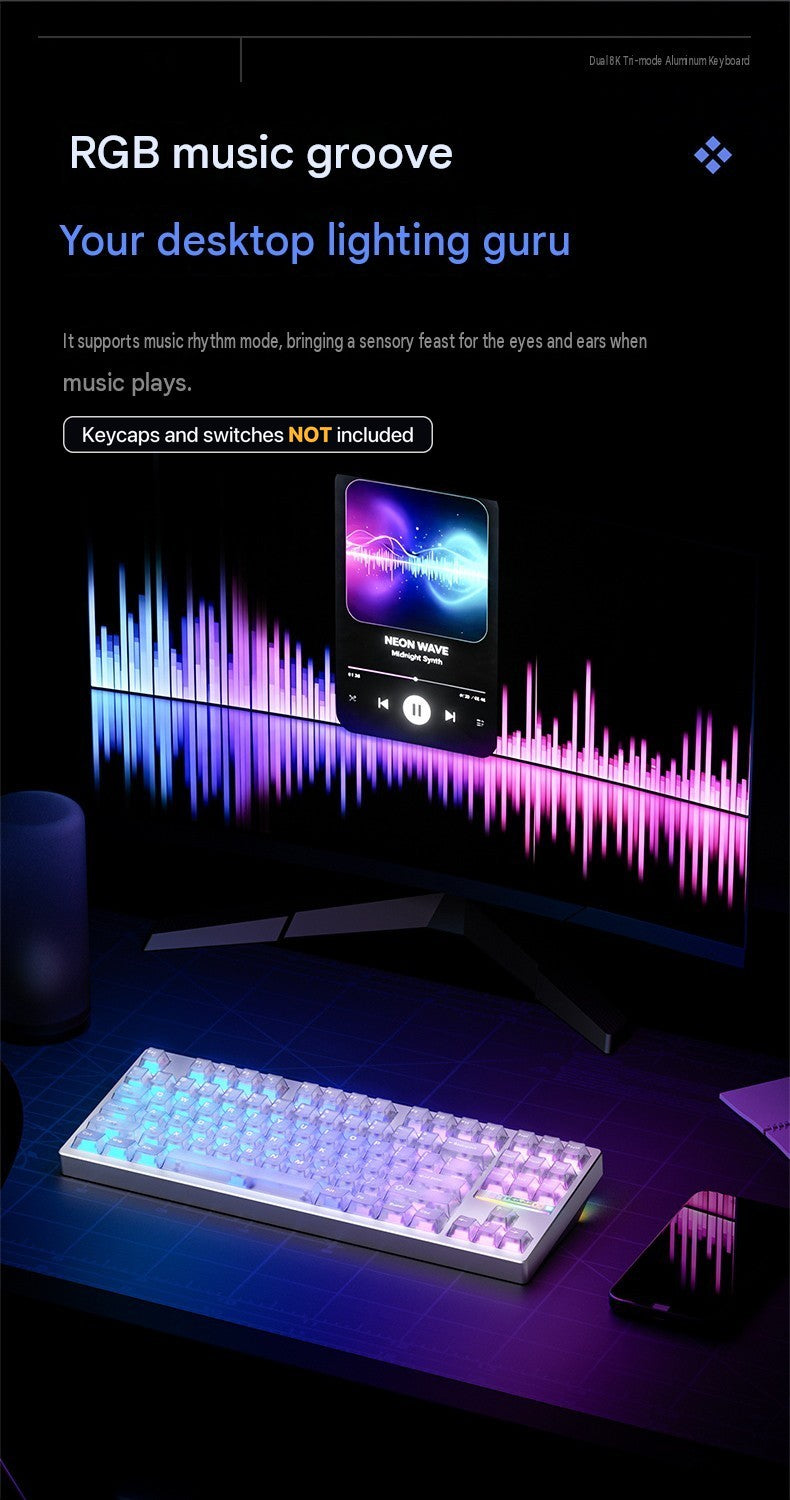

The NUT87 reaches an 8000Hz polling rate in both wired and 2.4GHz wireless modes (0.125ms response), and Bluetooth lets you move between devices without the dongle. A physical switch on top of the case flips between wired and wireless instantly, making this a flexible tri-mode keyboard kit for desktops, laptops and tablets. Music- and keystroke-reactive RGB runs along the top edge, with a second underglow bar beneath the Home, End, Delete and arrow-key cluster.

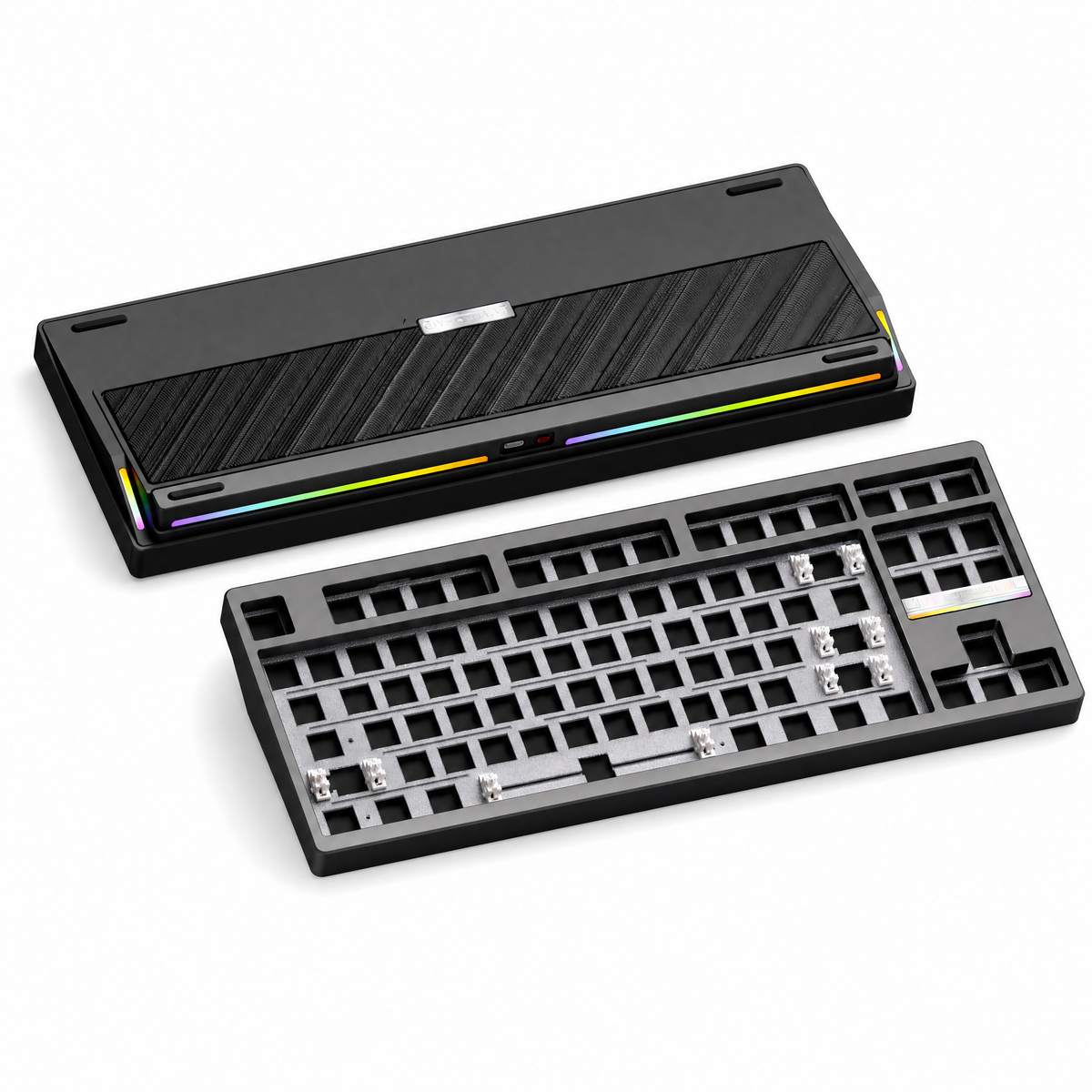

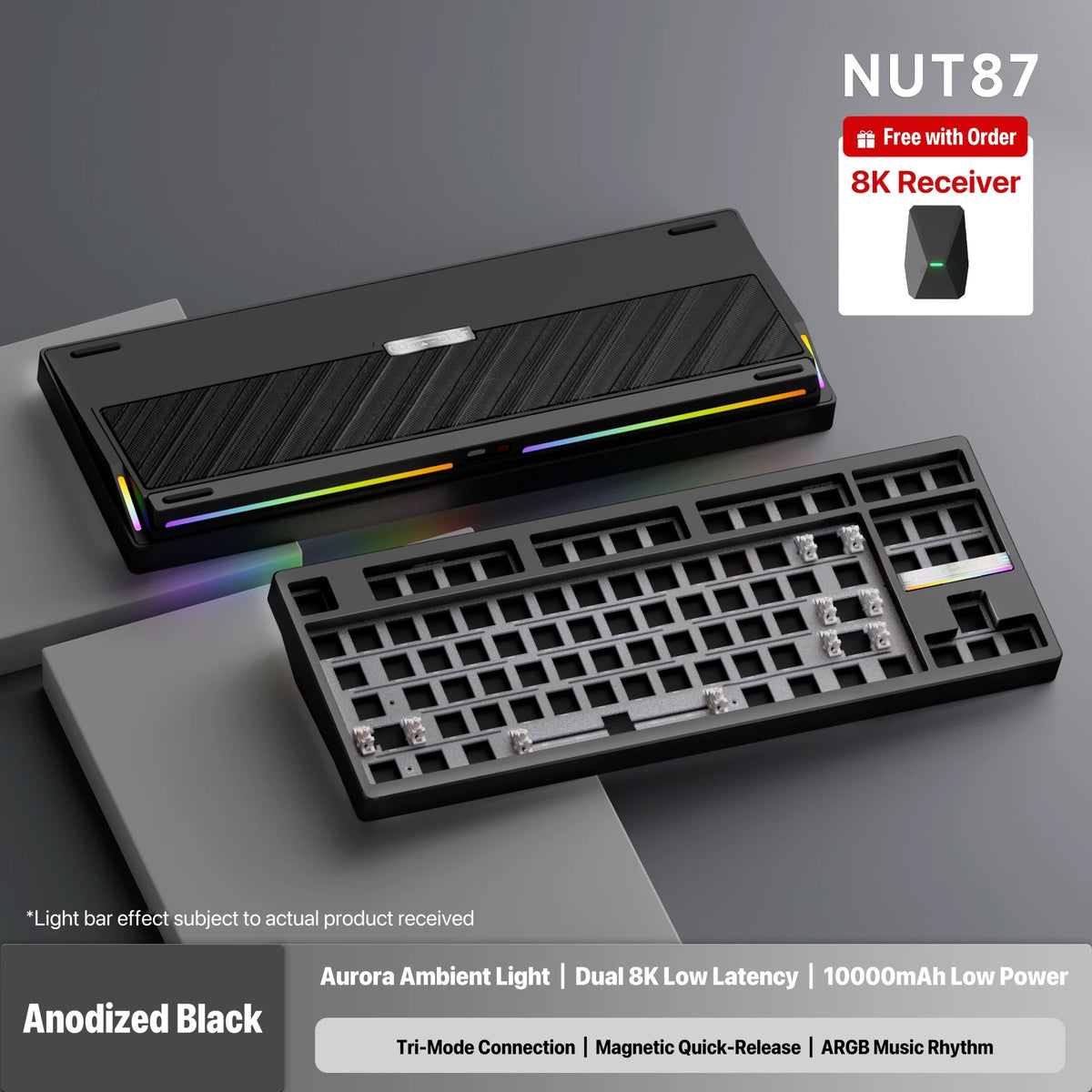

The ball-catch case opens without screws or tools, and pogo pins connect the daughterboard so there is no internal ribbon cable to snag. The hot-swappable PCB takes MX-style switches with no soldering, and Weikav's browser-based driver (press Fn+P) handles key remapping, macros and lighting with nothing to install. This version comes in anodized black with the knurled aluminum backplate weight.
Note: The Weikav NUT87 Keyboard Kit is sold as a barebone kit. The case, PCB, plate, stabilizers and foam come assembled; switches and keycaps are not included, so you can finish it with your own.

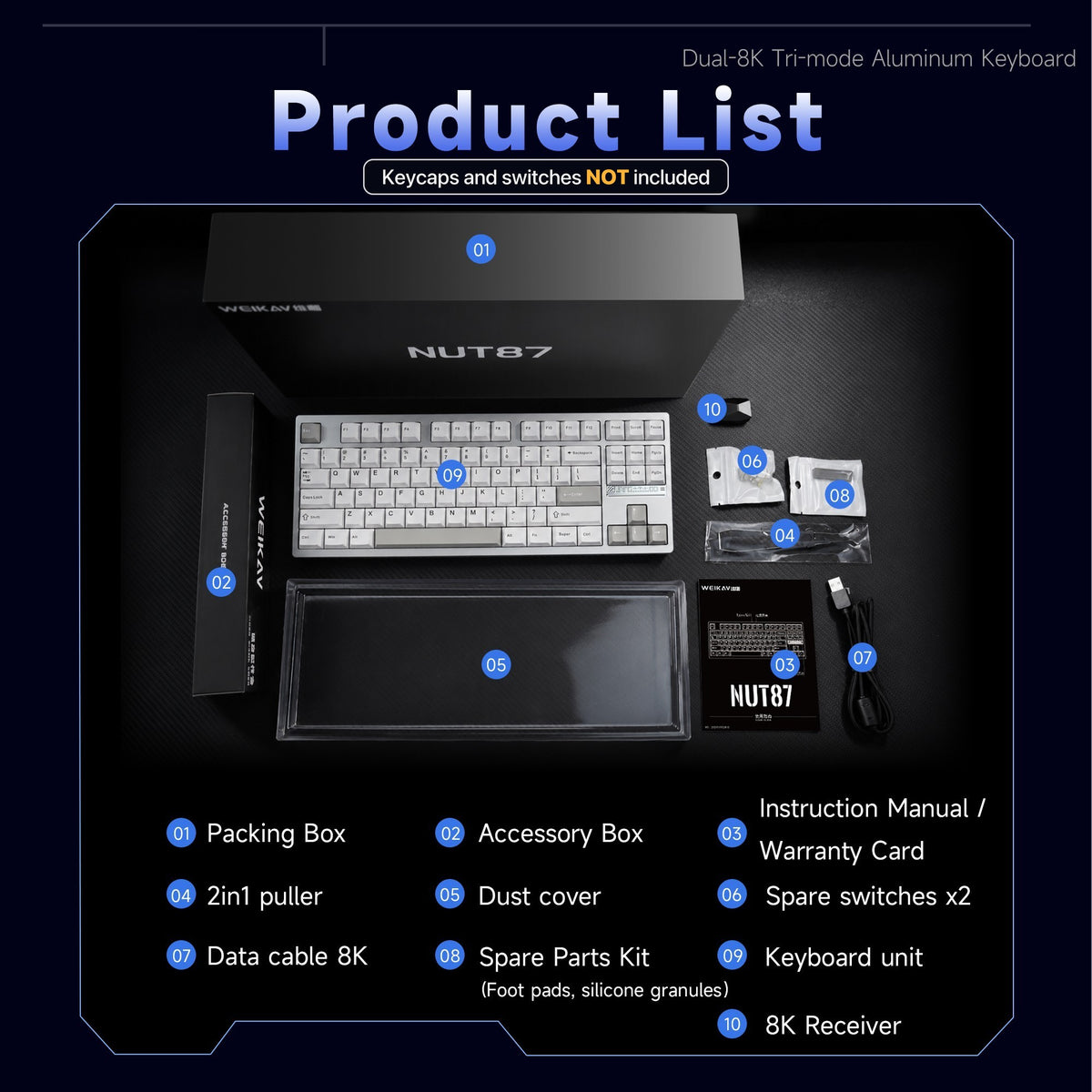

Included in The Box
Included in The Box
- Weikav NUT87 Keyboard Kit: Barebone (without switches and keycaps)

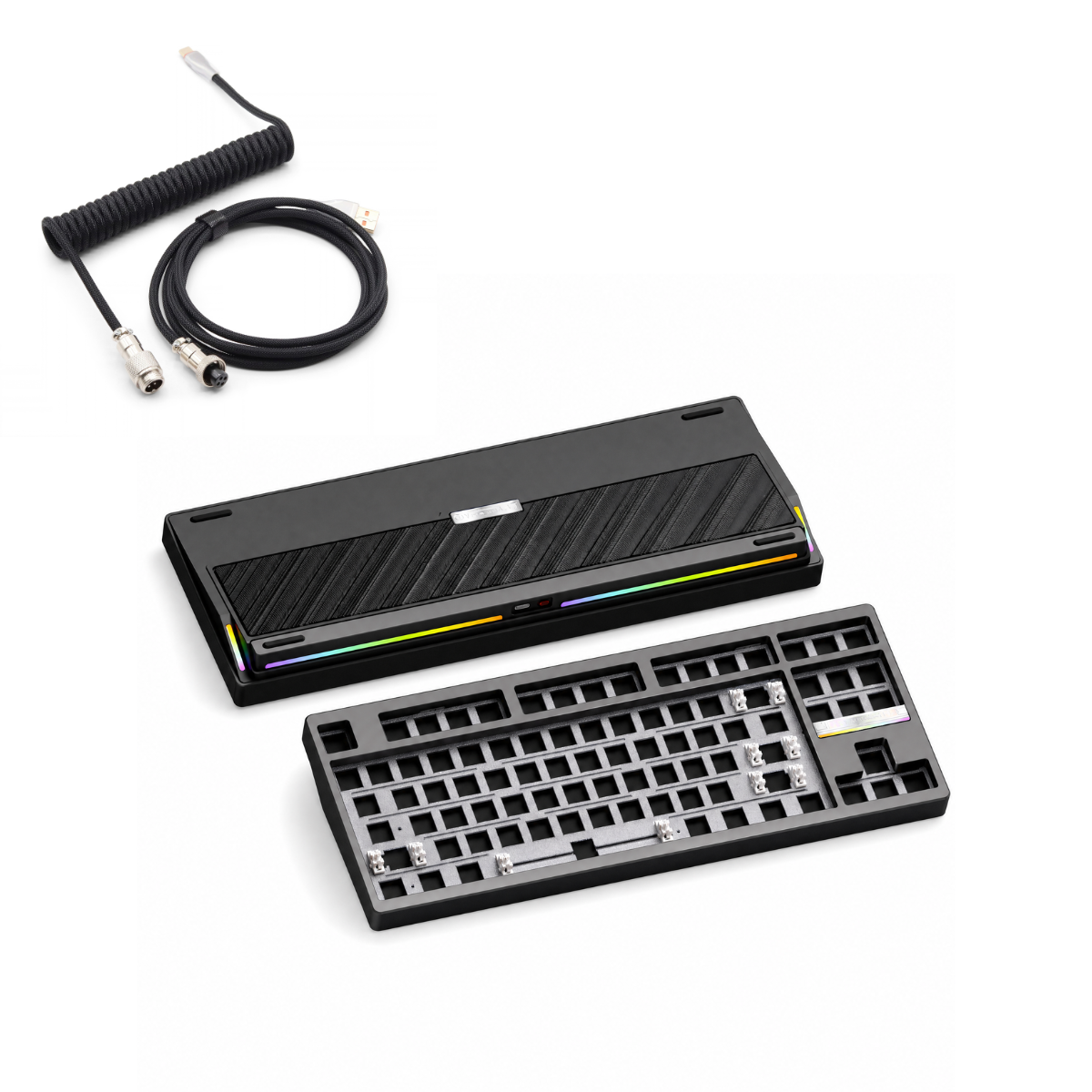

- Standard or Aviator USB Cable: Based on selected option

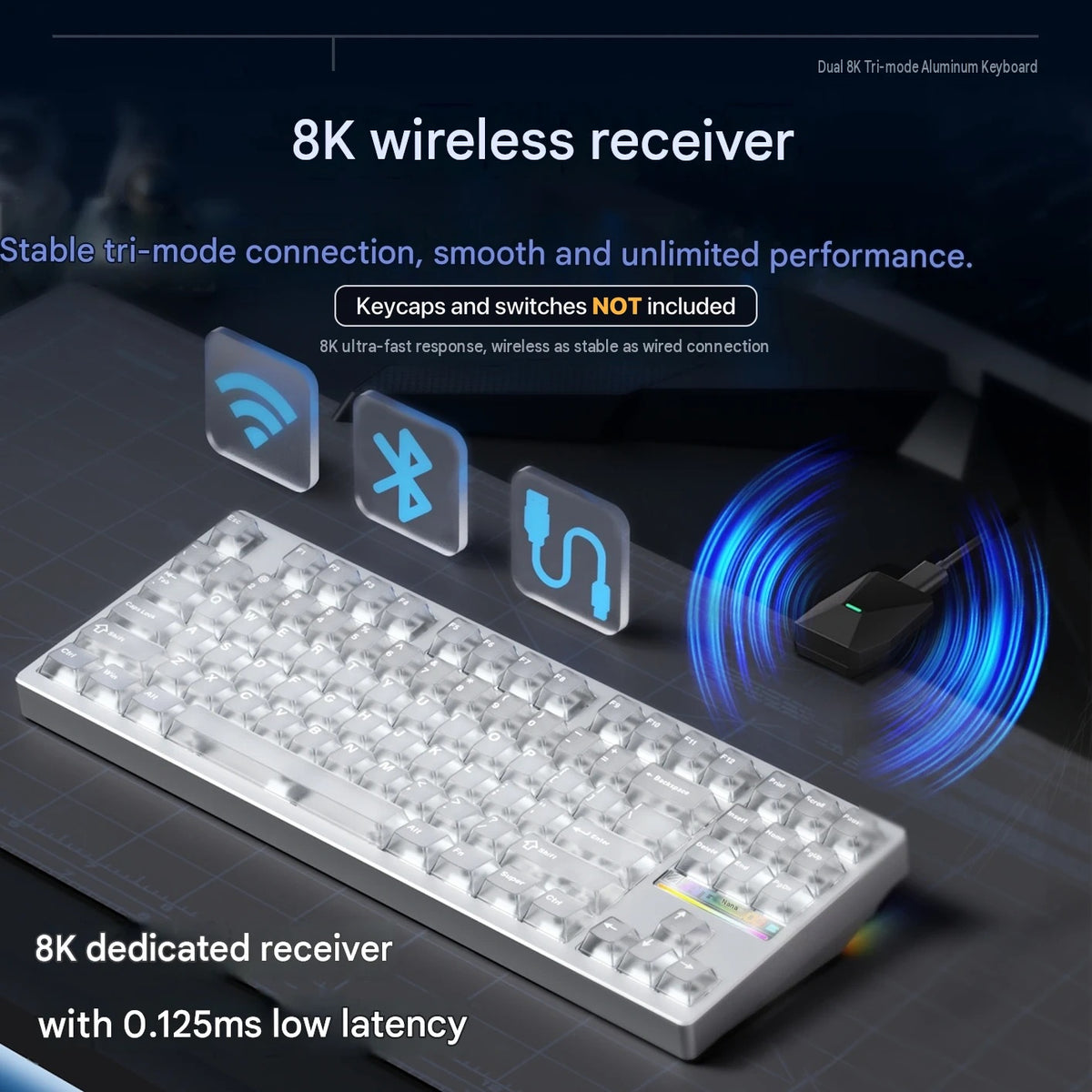

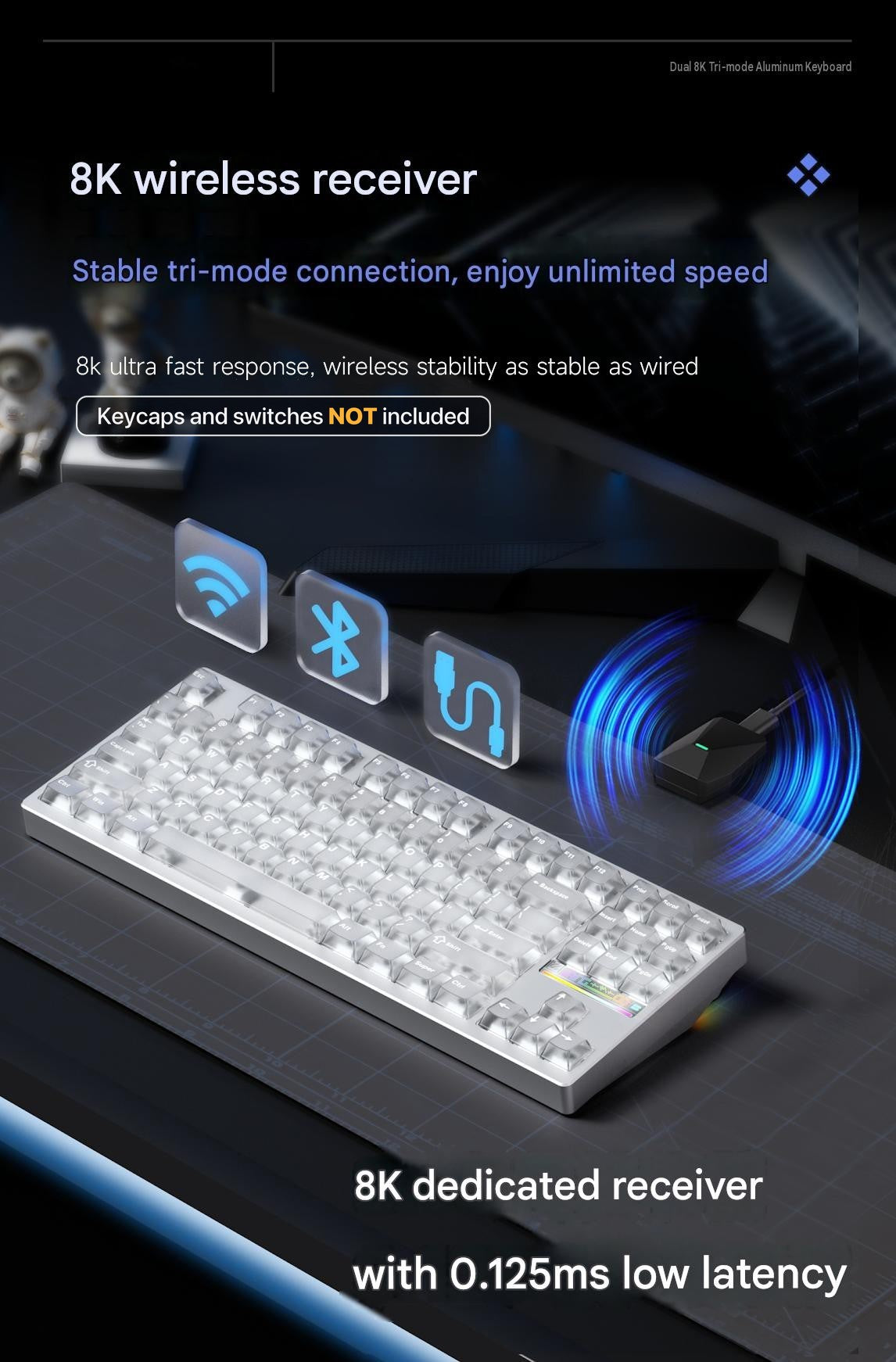

- 8K 2.4GHz Wireless Receiver
- Switch and Keycap Puller
- Manual
- TKL Wireless Mechanical Keyboard Kit – Tenkeyless 87-key ANSI layout keeps the function row, arrows and editing cluster while freeing up mouse space
- 8K Polling, Wired and Wireless – 8000Hz polling in both USB-C wired and 2.4GHz wireless modes for a 0.125ms response time
- Tri-Mode Connectivity – USB-C wired, 2.4GHz wireless with the included 8K receiver, and Bluetooth, with a physical mode switch on top of the case
- CNC 6063 Aluminum Case – Machined from a solid block and sandblasted to a 220-grit anodized finish that resists fingerprints
- Gasket Mount with PC Plate – Polycarbonate plate on gaskets for a softer, more flexible typing feel
- Five-Layer Acoustic Dampening – PORON foam, PET acoustic pad, IXPE switch pad, PORON switch-socket foam and insulating gasket for a clean, muted sound
- Hot-Swappable PCB – 1.2mm single-key-slot PCB accepts MX-style switches with no soldering
- Tool-Free Ball-Catch Case – Opens without screws; pogo pins replace the internal ribbon cable, so there is nothing to unplug
- Reactive RGB Lighting – Top-edge lightbar reacts to music and keystrokes, plus underglow beneath the editing cluster
- Web-Based Driver – Press Fn+P to remap keys, program macros and set lighting in your browser, no software install
- Knurled Aluminum Backplate – Blade-pattern aluminum weight adds heft and a machined look to the underside
- Barebone Kit – Assembled case, PCB, plate, stabilizers and foam, ready for your choice of switches and keycaps
| Specification | Details |
|---|---|
| Brand | Weikav |
| Model | NUT87 |
| Product Type | Barebone keyboard kit (switches and keycaps not included) |
| Color | Black (anodized) |
| Layout | TKL (tenkeyless, 87 keys), ANSI |
| Case Material | CNC-machined 6063 aluminum, 220-grit sandblasted |
| Mounting Structure | Gasket mount |
| Plate | PC (polycarbonate) |
| Backplate Weight | Knurled (blade-pattern) aluminum |
| PCB | 1.2mm single-key slot, hot-swappable |
| Switch Compatibility | MX-style (cross stem) switches |
| Connectivity | Tri-mode: USB-C wired / 2.4GHz wireless / Bluetooth |
| Polling Rate | 8000Hz wired / 8000Hz 2.4GHz wireless (0.125ms) |
| Mode Switch | Physical wired/wireless switch on top of case |
| N-Key Rollover | Yes |
| Quick Release | Ball-catch case + magnetic pogo pin daughterboard |
| RGB Lighting | Top-edge reactive lightbar + editing-cluster underglow, 7 preset modes, fully customizable |
| Acoustic Dampening | PORON foam + PET acoustic pad + IXPE switch pad + PORON switch-socket foam + insulating gasket |
| Software | Weikav web driver (Fn+P), no install required |
| OS Compatibility | Windows, macOS, iOS, Android |
| Dimensions | 358.8 × 136.8 mm |
| Typing Height | 19.0 mm front / 37.2 mm rear |
| Net Weight | 2080 ±20 g (fully built) |
