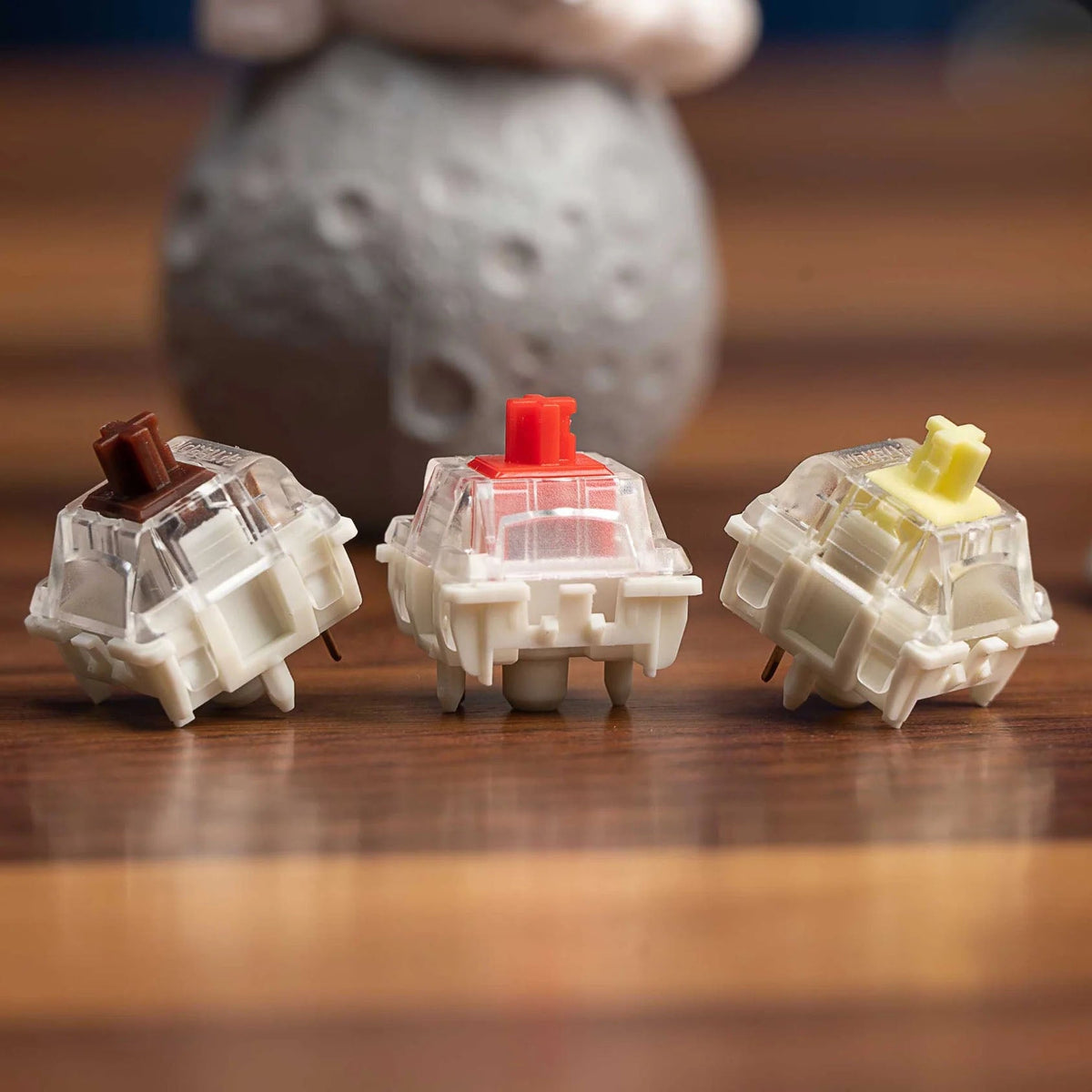

Optical vs Mechanical Switches: What Actually Changes
If you have shopped for a gaming keyboard recently, you have run into optical switches sold as the faster alternative to traditional mechanical switches. The claims are confident and the explanations are usually vague. Here is the short version: an optical switch registers a keypress using a beam of infrared light instead of two pieces of metal touching, and that one change ripples through speed, durability, compatibility, and how much you can modify the switch later.
Whether that trade is worth making depends on what you want from the board. This guide covers how optical switches work, whether optical switches are really faster than mechanical switches, what you give up in return, and how both stack up against the magnetic Hall effect switches that now dominate competitive gaming.
How Optical Switches Work: Light Instead of Metal Contacts
An optical keyboard switch looks almost identical to a normal switch from the outside. The difference is inside the housing and inside the PCB underneath it.
- An infrared emitter sits on one side of the switch housing and a light sensor sits on the other.
- The stem carries a small shutter, or flag, that sits in the light path.
- Pressing the key moves that shutter and changes whether light reaches the sensor.
- The board reads that change in light as a keypress. No metal ever touches.
Everything you feel is unchanged in principle. A spring still pushes back, a stem still slides in a housing, and a tactile bump can still be built in. That is why optical switches come in linear, tactile, and clicky variants just like mechanical ones. The light beam handles the signal; the plastic and metal still handle the feel.
How a Mechanical Switch Registers a Keypress
A standard mechanical switch closes a circuit. As the stem travels down it lets two metal leaves spring together, and the keyboard reads the completed circuit as a press. Classic MX-style switches were built around roughly 2 mm of actuation travel and about 4 mm of total travel, though modern designs vary widely and long-pole switches deliberately break from those numbers.
The catch is that metal contacts do not close cleanly. They bounce. For a few thousandths of a second the circuit flickers open and closed before settling, and if the firmware reported every one of those flickers you would get the dreaded double typing. So firmware filters it out with a debounce delay. QMK, the most widely used open-source keyboard firmware, applies a default debounce time of 5 milliseconds, and that value is adjustable.
Are Optical Switches Faster Than Mechanical Switches?
This is the whole marketing pitch, so it deserves a careful answer. An optical switch has no metal contacts, so it has no contact bounce to filter. In principle the debounce window that a mechanical board needs simply does not apply, and the press can be reported as soon as the sensor sees the change.
In practice the advantage is much smaller than the advertising suggests, for three reasons:
- Debounce is only one piece of input latency. Polling rate, matrix scan rate, USB scheduling, firmware processing, and your monitor all add delay too, and several of them are larger contributors than a debounce filter.
- Mechanical firmware is not stuck at a fixed penalty. Debounce algorithms that report a press immediately and then filter afterwards already remove most of the theoretical gap, and debounce timing can be tuned.
- Implementation matters more than the technology. A well-built mechanical board can easily beat a poorly built optical one, because keyboard latency depends on the whole design rather than the sensing method alone.
The honest summary: optical sensing removes a genuine source of delay, the saving is on the order of a few milliseconds at most, and it is not the difference between winning and losing a fight. If you want a meaningful latency improvement, a high polling rate and a shorter actuation point will do more for you than the sensing method alone.
Optical Switch Durability vs Mechanical Switch Lifespan
Durability is the stronger argument for optical. Because nothing conducts through a physical contact point, there is no contact pitting, oxidation, or corrosion to slowly degrade the signal. That is the failure mode behind a lot of keyboard chatter on well-used boards.
Manufacturers commonly rate optical switches at around 100 million keystrokes, while mechanical switches are typically rated somewhere in the 50 to 100 million range depending on the model. Treat all of those as marketing figures rather than guarantees.
Keep some perspective, though. Optical switches still have springs that relax, stems that wear, and factory lube that migrates, so the feel can change long before the sensor does — and most people replace a keyboard for other reasons well before any of these ratings are reached.
Hot-Swap Compatibility: Optical Switches Need Their Own PCB
This is the practical detail that catches people out, and the most important thing to understand before buying.
Optical switches are not compatible with standard mechanical hot-swap sockets. A normal hot-swap PCB has metal sockets waiting for the two electrical pins on an MX-style switch. An optical switch does not send a signal through those pins at all; it needs a PCB with the emitter and sensor hardware aligned to the switch housing. You cannot drop optical switches into a normal keyboard kit, and you cannot drop normal switches into an optical board.
Optical is also not one single standard. Housings and light paths differ between manufacturers, so optical switches are often not interchangeable between optical boards from different brands. That is why the enthusiast side of the hobby has stayed on MX-compatible mechanical switches, where a huge range of options fits almost any hot-swap keyboard you own.
One piece of good news: keycap compatibility is usually fine. Optical switches from the major makers generally use the same cross-shaped MX-style stem, so standard keycap sets typically fit. The stem is the part that matches; the pins underneath are not.
Sound, Feel, and Modding: What You Give Up
If you care about how a keyboard sounds and feels, the mechanical ecosystem is simply far deeper. There are hundreds of MX-compatible switch models across linear, tactile, and clicky designs, with different housing materials, stem materials, spring weights, and pole lengths, and an enormous body of community knowledge about how to modify each one.
Optical switches can be lubed, but you have to work around the light path, and applying lube where it can fog or block the sensor window causes problems that a mechanical switch simply never has. Switch films, spring swaps, and stem swaps are all far less established for optical. If part of the appeal of a custom keyboard is tuning the switches yourself, that is a meaningful loss.
It is also much easier to audition mechanical switches before committing. A switch keychain tester lets you feel a switch in your hand first, and a keycap and switch puller makes swapping them a two-minute job on a hot-swap board. Smooth pre-lubed linears like the Kailh Box Spring linear switches or the transparent-housing Gateron G Pro 3.0 switches are the kind of thing that is trivially easy to try on a mechanical board and effectively impossible on an optical one.
Optical vs Hall Effect Magnetic Switches for Gaming
Here is the part the optical marketing tends to skip. If you are chasing speed for competitive shooters, the technology that actually won that argument is not optical — it is the Hall effect magnetic switch.
A magnetic switch puts a small magnet in the stem and a sensor on the PCB that reads the magnetic field strength continuously. Because the board knows exactly how far down the key is at every moment, rather than just on or off, it unlocks features an ordinary optical switch cannot offer:
- Adjustable actuation, so you can set how deep a key has to travel before it registers.
- Rapid trigger, which resets the key the instant you start lifting instead of waiting for a fixed reset point.
- Analog input for gradual movement in racing and flight games.
- Per-key behaviours such as dynamic keystroke, where different depths trigger different actions.
Most optical switches are still a simple digital on/off sensor with a fixed actuation point. A few analog optical designs exist, but the adjustable-actuation market has consolidated firmly around magnetic sensing. If your goal is the fastest and most configurable gaming input, something like the Skyloong GK68HE magnetic keyboard or the hybrid Skyloong GK68HEAT is a far more direct answer than an optical board. You can also build around individual Gateron Magnetic Jade switches on a compatible board.
Note that magnetic switches share the same limitation as optical ones: they need a PCB designed for them and will not work in a standard hot-swap socket.
Which Switch Type Should You Actually Choose?
Strip away the marketing and the decision is reasonably clear.
- Choose mechanical if you want the widest choice of feel and sound, the ability to swap and mod switches freely, and compatibility with the largest ecosystem of parts. This covers the vast majority of typists, office users, and even most gamers.
- Choose Hall effect magnetic if you play competitively and genuinely want adjustable actuation, rapid trigger, and analog control. This is the real performance upgrade.
- Choose optical if you like a specific optical board you have tried, value the long durability rating, and are comfortable being locked into that manufacturer's switches for the life of the keyboard.
For transparency: Glacier PC Gaming does not stock optical switches. Our catalogue is built around MX-compatible mechanical key switches and magnetic switches, because those are the two paths that give you the most flexibility and the most genuine performance respectively. If you are starting from scratch, a hot-swap kit such as the Glacier GK84 keyboard kit lets you change your mind about switches later, which is exactly the freedom an optical board takes away.
Frequently Asked Questions About Optical Switches
Are optical switches better than mechanical switches?
Not better, different. Optical switches win on durability ratings and remove contact bounce entirely. Mechanical switches win decisively on choice, moddability, and cross-compatibility. For most people the flexibility of a standard mechanical board is worth more than a few milliseconds of theoretical latency.
Do normal keycaps fit optical switches?
Usually yes. Most optical switches use the standard cross-shaped MX-style stem, so ordinary keycap sets fit. It is the pins underneath, not the stem on top, that make optical switches incompatible with mechanical PCBs.
Can you put optical switches in a hot-swap keyboard?
No, not in a normal one. A standard hot-swap socket is looking for electrical pins that an optical switch does not use. Optical switches only work in a keyboard whose PCB was built for optical sensing, and often only with that brand's own optical switches.
Can you lube optical switches?
Yes, but carefully. You can lube the stem rails and spring as normal, but you must keep lubricant away from the light path and sensor window, since anything that fogs or blocks it can cause missed or stuck inputs. Mechanical switches are far more forgiving to lube.
Are optical switches good for typing?
They are perfectly usable, and come in tactile and clicky variants as well as linear. But typing feel comes from the spring, stem, housing, plate, and case rather than how the signal is sensed, so optical brings no inherent typing advantage and offers far fewer options to find the feel you want.
Optical, Hall effect, or mechanical: which is fastest?
Hall effect magnetic switches are the most configurable for speed, because adjustable actuation and rapid trigger let you shorten both the press and the reset. Optical removes debounce delay. Standard mechanical is marginally behind on paper. In real use, polling rate, firmware quality, and actuation depth matter more than the sensing technology on its own.
